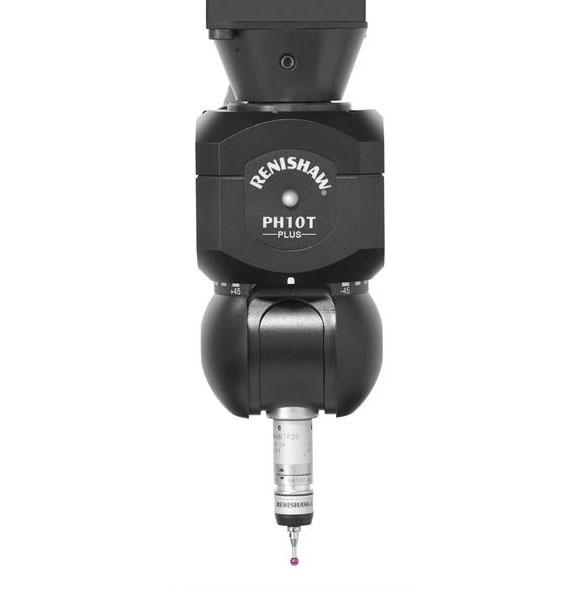

PH10T Plus Motorized Probe Head

The PH10T motorized probe head allows complete, rapid, and repeatable inspection of most complex components with minimum human intervention. Full orientation of your TP2 or TP6 probe between any of 720 positions, under manual or program control, turns your 3-axis CMM into a 5-axis machine. 2(sigma) Positional Repeatability: 0.5 micronsCycle Time (90 degree move): 3.5 secondsTotal Angular MovementA Axis 105 degrees-0 degrees in 7.5 degree steps=15 positionsB Axis /- 180 degrees in 7.5 degree steps=48 positionsTotal Number of Positions: 720Maximum Extension Bar Length: 300 mm using PEL4 extensionHead Mounting: Shank to suit your CMMProbe Mounting Facility: M8 threadProbe Head Control: PHC10-2 (purchase separately)
