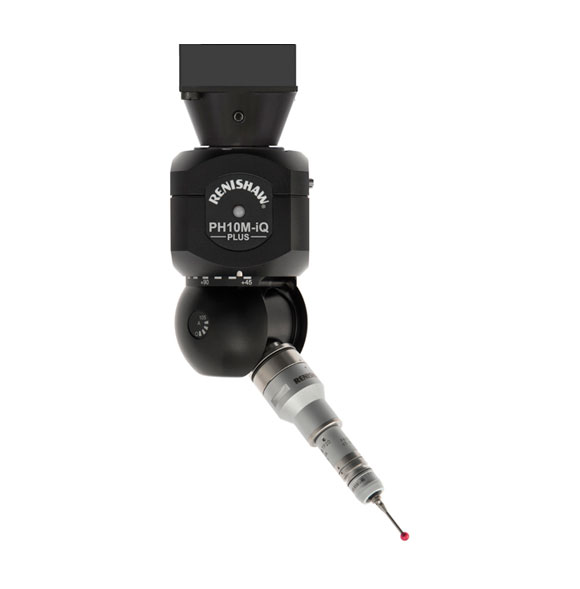

PH10M Plus Motorized Probe Head

SPECIFICATIONS: 2(sigma) Positional Repeatability: 0.5 micronsCycle Time (90 degree move): 3.5 secondsTotal Angular Movement:A Axis 105 degrees-0 degrees in 7.5 degree steps = 15 positionsB Axis /- 180 degrees in 7.5 degree steps = 48 positionsTotal Number of Positions: 720Maximum Extension Bar Length: 300 mm using PAA3 extensionHead Mounting: Shank to suit you CMMProbe Mounting Facility: AutojointProbe Head Control: PHC10-2 (Shown with AM1, PAA1 adaptor, TP2 probe and Stylus – Not Included)
