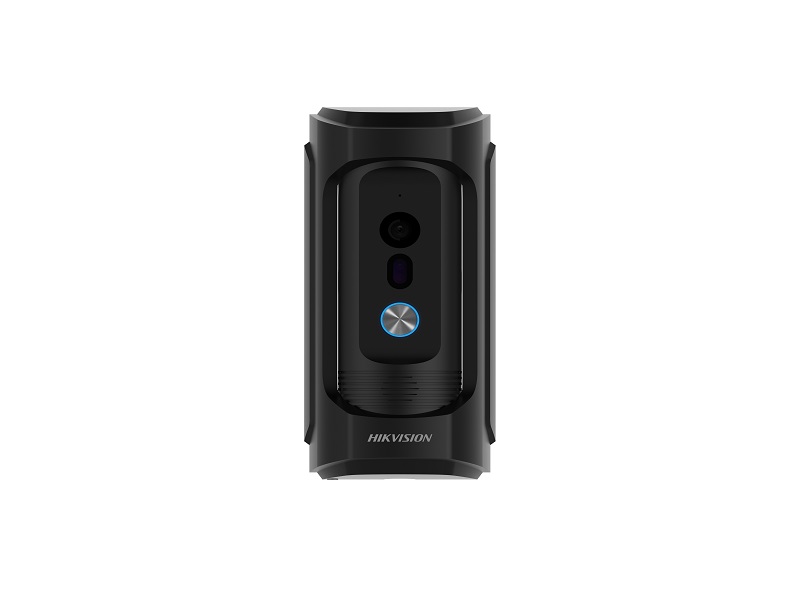

HIKVISION Vandal-Resistant Doorbell

Vandal-Resistant Doorbell 2MP HD Camera with IR supplement providing excellent image quality Supports standard POE power supply Supports mechanical doorbell, easier to call Convenient Hik-Connect APP Mobile Control: Receive calls, open the door and live view remotely Supports web configration Higher protection level: IK09 & IP65 System parameters Operating system Embedded Linux operation system ROM 32 M RAM 256 M CPU Embedded MCU Processor Display parameters Screen size / Operation method / Type / Resolution / Video parameters Lens 1 Resolution Main stream : 1920 `d7 1080 Sub stream : 640 `d7 480 FOV Horizontal:95`b0 Vertical:54`b0 WDR Support Supplement light IR supplement Video compression standard H.264 Audio parameters Audio compression standard G.711 U`a3`acG.711 A Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker (More than 80 dB within 30 cm) Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity Face capacity / Card capacity / Linked indoor station capacity 1 Sub door station capacity 16 Network parameters Network protocol TCP/IP, RSTP, SIP Wired network 10/100 Mbps self-adaptive Ethernet Wi-Fi standard / Bluetooth version / 3G/4G standard / Device interfaces Alarm input 1 Debugging port 1 Network interface 1 Lock control 1 (1 relay, max to 30 VDC, 2 A) Power interface 1 General Button 1 Power supply IEEE802.3af, standard PoE or 12 VDC Installation Surface mounting Power consumption `a3`bc 10 W Working temperature -30`b0 C to 50`b0 C(-22`b0 F to 122`b0 F) Gross Weight: 0.992 kg Net Weight: 0.795 kg Working humidity 10% to 90% Protective level IP65, IK09 Dimensions (L x W x H) 161.85 mm `d7 74.13 mm `d7 53.2 mm(6.37″ `d7 2.92″ `d7 2.09″) Battery / Language English,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese Application environment Outdoor and Indoor
