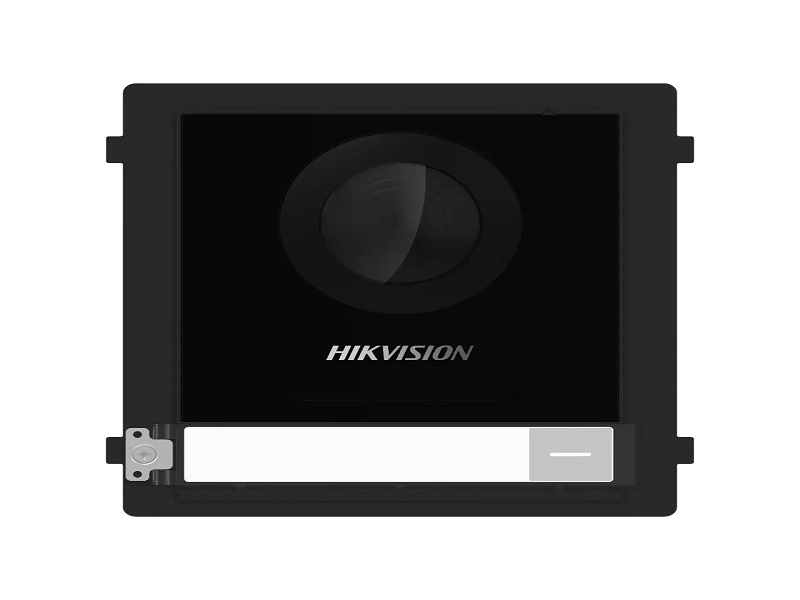

HIKVISION Modular Door Station Main Unit

KD8 Series Modular Door Station Modular door station main unit, needs mounting bracket 2MP HD Camera, fish eye, IR supplement 1 Call physical Button, 2 lock relays, 4-ch alarm input Video intercom to indoor station and master station WEB Configuration IP65, 12 VDC or standard PoE Power output for electronic lock, max to 12 V, 500 mA System Parameters Operating System Embedded Linux operation system ROM 32 MB RAM 256 MB CPU Embedded Processor Display Parameters Screen Size NA Operation Method NA Type NA Resolution NA Video Parameters Supplement Light Low illumination, IR supplement lights Video Standard H.264 Lens 1 FOV Horizontal: 146`b0, Vertical: 82`b0 WDR Support Resolution 2 MP Audio Parameters Audio Input Built-in omnidirectional microphone Audio Compression Standard G.711 U, G.711 A Audio Output Built-in loudspeaker Audio Compression Bitrate 64 Kbps Audio Quality Noise suppression and echo cancellation Volume Adjustment Adjustable Capacity Fingerprint Capacity / User Capacity 2000 Card Capacity 6000 Face Capacity NA Linked Indoor Station Capacity 500 Event Capacity / Sub Door Station Capacity 16 Network Parameters Communication Protocol TCP/IP, RTSP Wired Network 10/100 Mbps self-adaptive Ethernet Wi-Fi NA Bluetooth NA 3G/4G NA Device Interfaces Alarm Input 4 (2 exit butttons and 2 door contacts by default) Network Interface 1 RJ45 TAMPER 1 Exit Button 2 (2 for lock control) Door Contact Input 2 RS-485 1 (1 for Hikvision`s sub module communication) Wiegand NA TF Card NA Alarm Output NA Lock Control 2 (2 relay, max to 30 V, 2 A) USB NA Power Interface 12 VDC power output (max to 12 V, 500 mA) Two-Wire IP Interface NA General Power Supply 12 VDC/PoE ( IEEE 802.3af) Working Temperature -40`b0 C to 60`b0 C (-40`b0 F to 140`b0 F) Working Humidity 10% to 95% Button 1 Protective Level IP65 Installation Surface mounting & flush mounting Dimensions(L `d7 W `d7 H) 98 mm `d7 100 mm `d7 42 mm (3.86″ `d7 3.94″ `d7 1.65″) Language English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak Indicator 0 Weight Without package: 0.380 kg With Package: 0.541 kg Battery / Application Environment Outdoor Power Consumption ≤ 5 W
