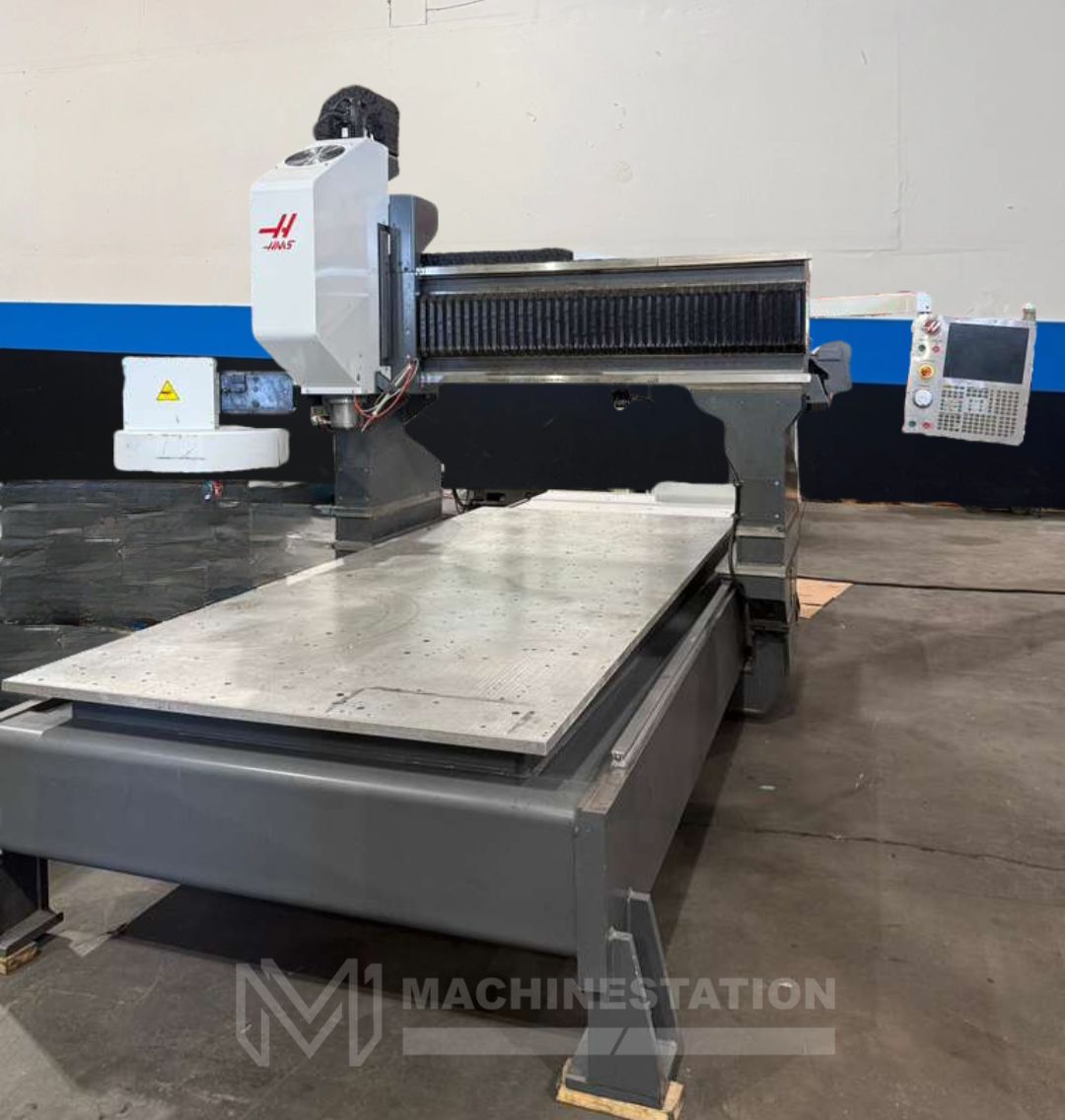

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: Haas Model: GR-510 Year: 2011 Condition: Used -Good Features: Haas CNC Control 10,000 RPM Spindle (Upgraded $6,195 value Included) 6″ Extended Z-Axis Clearance (Upgraded $8,195 value Included) 20 Station Automatic Tool Changer (Upgraded $5,395 value Included) Wireless Intuitive Probing System (Probe Needed) (Upgraded $6,795 value Included) Remote Jog Handle Coolant System Travels: X-Axis: 121″ Y-Axis: 61″ Z-Axis: 11″ Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″ Feed Rates: Cutting Feed Rates: 800 Inch per Minute X Axis Rapid Traverse Rates: 800 Inch Per Minute Y Axis Rapid Traverse Rates: 2100 Inch Per Minute Z Axis Rapid Traverse Rates: 1100 Inch Per Minute Table: Length: 122″ Width: 53″ Max Weight on Table: 6,000 lbs Between Columns: 62″ Spindle: Taper Size: 40 Speed Range: 10,000 RPM Spindle Power: 15 HP Automatic Tool Changer: Capacity: 20 Tools Max Tool Weight: 12 lbs Max Tool Dia: 3.5″ General: Air Required: 100 psi, 4 scfm Power: 220v / 66FLA / 3-Phase Overall Dimensions: 206″ x 111″ x 108″ High Weight: 19,400 lbs
