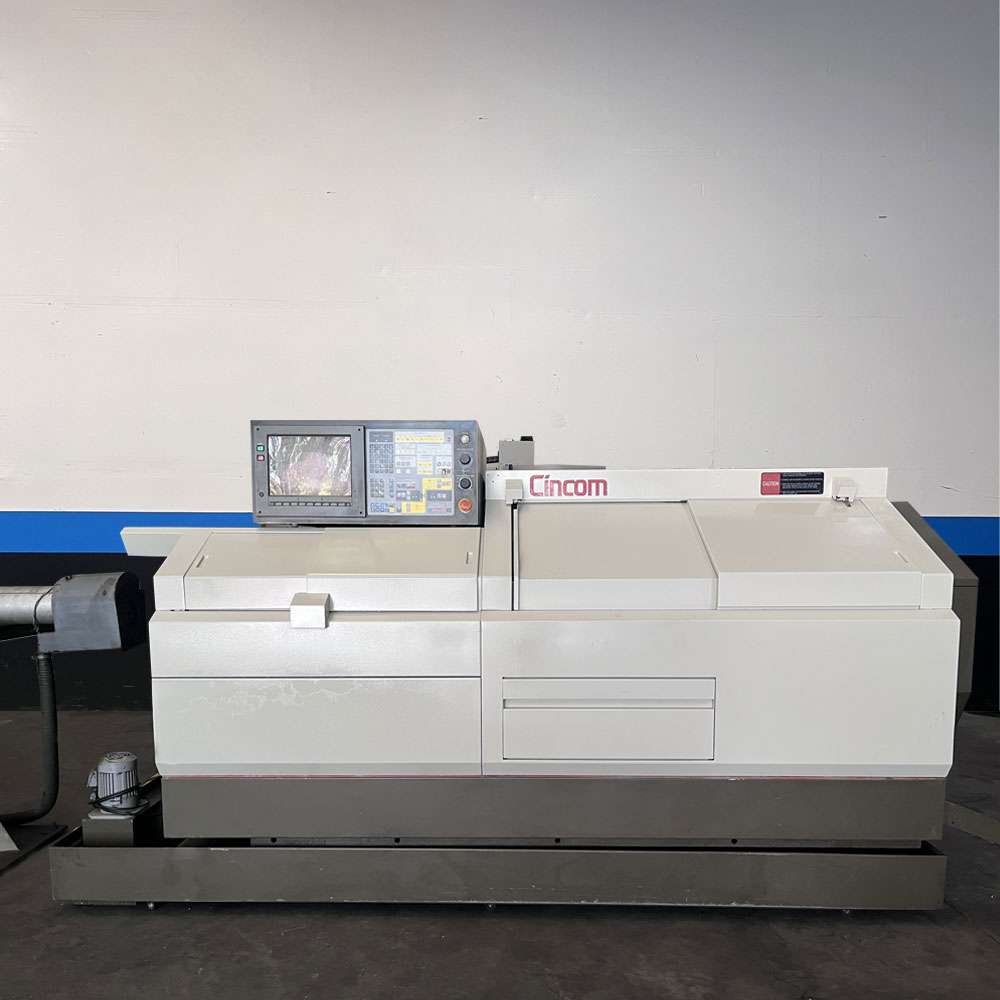

Citizen Cincom K16 VIIP CNC Swiss Type Automatic Lathe

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.* Make/Model: Citizen Cincom K16 VIIP Year: 2005 Condition: Used – Good Equipped With: Citizen Cincom (Fanuc) CNC Control 7 Axis X1, X2, Y1, Z1, Z2, C1, C2 Back Spindle C & Y Axis Capable Live Tools Capable Long Parts Capable MPG Control Part Catcher Part Conveyor Bar Feeder Interface – Enabled Main & Back Spindle Synchronization High Speed Rapid Traverse High Speed Program Processing Absolute Position Detection Automatic Lubrication System Coolant System Cool Blaster System CB510 Leveling Pads Capacity: Max Machining Diameter: 0.63″ (16 mm) Max Machining Length: 7.87″ (200 mm) Max Bar Capacity: 0.63″ (16 mm) Max Tool Positions: 18 Spindle Through-hole Diameter: 0.79″ (20 mm) Max. Workpiece Length For Front Ejection: 1.57″ (40 mm) Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) Max. Main Spindle Tapping Diameter: M8 Max. Back Spindle Chucking Diameter: 0.79″ (16 mm) Max. Back Spindle Drilling Diameter: 0.24″ (6 mm) Max. Back Spindle Tapping Diameter: M5 Max. Cross Drilling Diameter: 0.2″ ( 5 mm) Max. Cross Tapping Diameter: M4 Spindle: Main Spindle Indexing: 360° (Full C-Axis) Main Spindle Speed: 15000 RPM ? Back Spindle Motor: 3.7 kw Back Spindle Indexing: 360° Back Spindle Speed: 10000 RPM ? Back Spindle Motor: 1.1 kw Standard Tools: Turning Tools: 6 Stationary Tools For Front Spindle: 4 Stationary Tools For Back Spindle: 4 Power Driven Tools Attachment: Power Driven Tools: 4 Driven Tool Speed: 6000 RPM Driven Tool Motor: 0.4 kw General: Power Source: AC 220v / 3-Phase /60 Hz Power Requirement: 8 kva Overall Dimensions: 84″ x 54″ x 68″ High Weight: 4300 lbs. Approx.
