Citizen Cincom M20V CNC Swiss Type Automatic Lathe - Bar Feeder

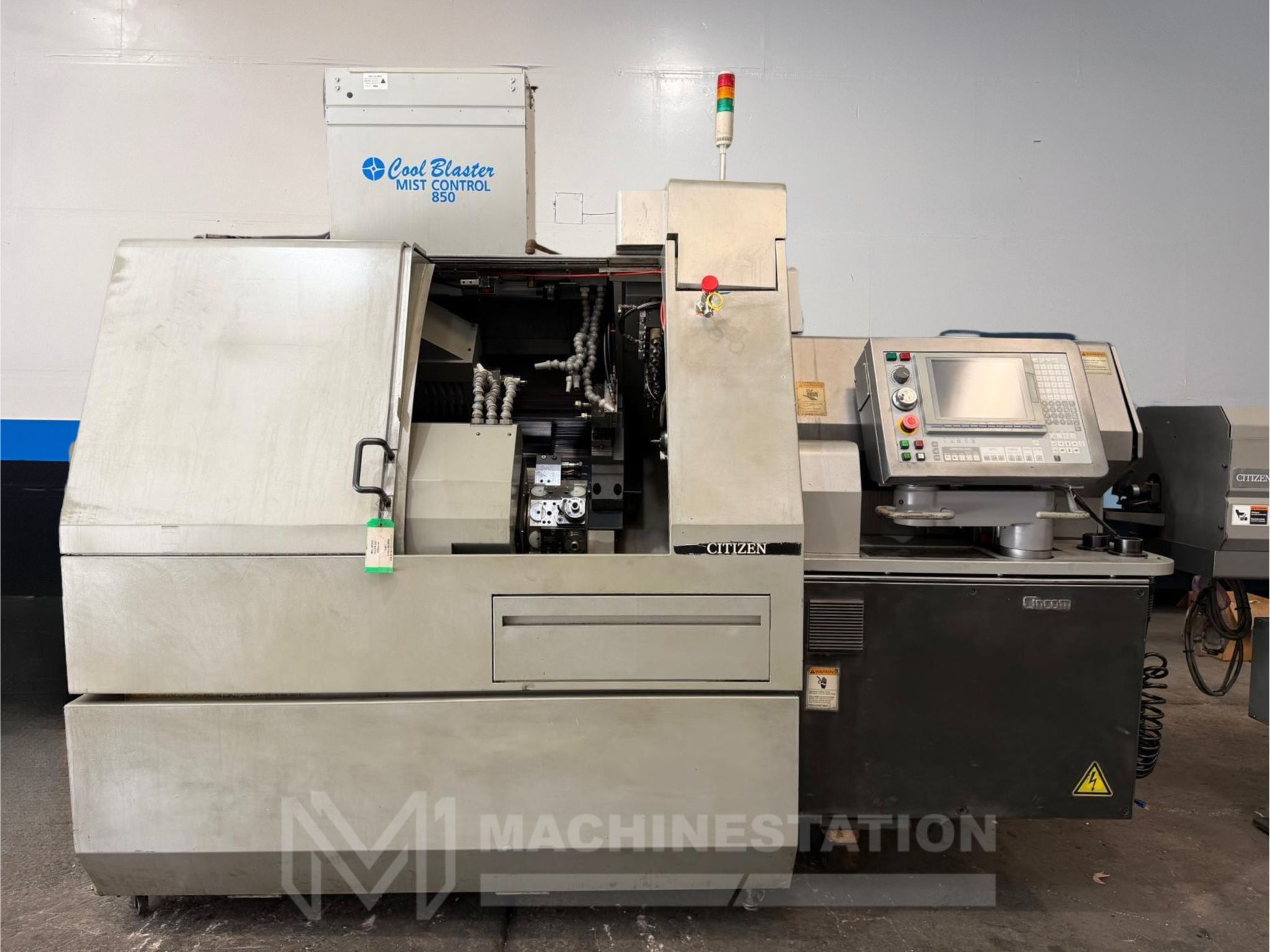

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.* Make: Citizen Cincom Model: M20V Year: 2007 Condition: Used – Good Equipped With: Citizen Cincom CNC Control Controlled Axes (Liner Axes) X1, X2, X3, Y1, Z1, Z2, Z3 Comes with Citizen CAV20-IS Bar Feeder 10 Station (20 Positions) Live Tool Automatic Turret Back Spindle C & Y Axis Capable Live Tools Capable Long Parts Capable MPG Control Main & Back Spindle Synchronization Automatic Lubrication System Cool Blaster Mist Control 850 Unit Cool Blast CB510 Unit Coolant System Capacity: Max Turning Diameter: 0.79″ (20 mm) Max Turning Length: 12.59″ (320 mm) Max Bar Capacity: 0.79″ (20 mm) Spindle: Main Spindle Indexing: 360° (Full C-Axis) Main Spindle Bore: 0.79″ (20 mm) Main Spindle Speed: 200 – 10,000 RPM Main Spindle Motor: 5 HP Back Spindle Indexing: 360° (Full C-Axis) Back Spindle Speed: 200 – 8,000 RPM Back Spindle Motor: 3 HP Turret & Gang Tooling: Turret Tools: 10 Station (20 Positions) Gang Tools: 5 Turning 4 Rotary Back Working Tool Post: 3 ( Rear Facing Tools On Turret) Rotary Tool Speed: 200 – 5000 RPM Rotary Tool Motor: 2 HP General: Power Source: AC 220v / 3-Phase /60 Hz Overall Dimensions: 110″ X 50″ X 72″ High without Bar Feeder Weight: 6,830 lbs. Approx.
