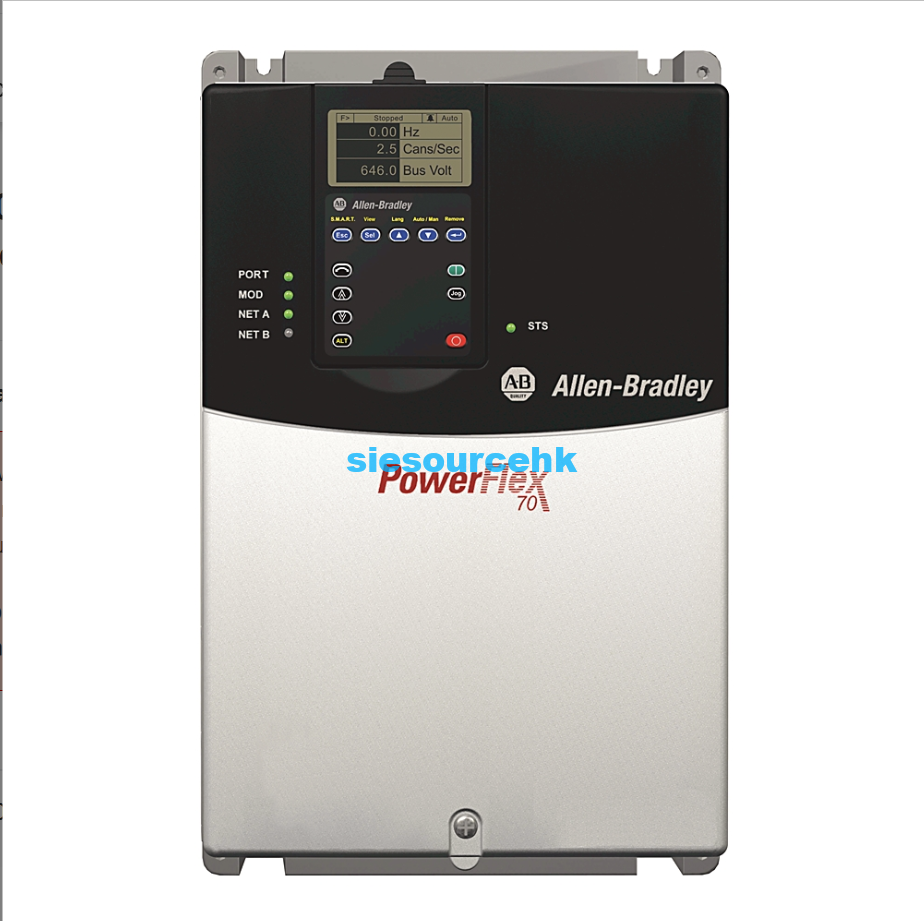

Allen-Bradley Inverter 20-750-20COMM

Allen-Bradley PowerFlex drives cover low- and medium-voltage applications from 0.2 kW to 10 MW. Their core value is “one network, modular design, energy-saving performance.”One NetworkEvery drive ships with an EtherNet/IP port and the CIP stack. No gateway is needed; a single cable handles real-time control, commissioning, data logging, and remote diagnostics.Modular HardwareBook-style narrow housings let you hot-swap power modules, control boards, communication cards, filters, and brake units. The 520 frame is only 180 mm high, while the 750 series keeps front-access maintenance up to 1,600 kW, cutting panel space by 30%.Energy-Saving ControlThe 520 family offers V/Hz and sensor-less vector modes, ≥98% full-load efficiency, built-in PID, and sleep/wake for pumps and fans. The 750 family adds closed-loop vector, permanent-magnet and synchronous-reluctance motor support, 0.01% speed accuracy and <5 ms torque response, saving 8–15% more energy than throttle valves.Safety & ReliabilityIntegrated STO and SIL3/PL e Safe-OFF meet EN 954-1 Cat 3. IP20, IP30 or IP66 variants run from –40°C to 70°C with MTBF >200,000 h.Easy ToolsStudio 5000 auto-imports the AOP and builds tags. A keypad or mobile app guides start-up, usually finished in five minutes. Predictive algorithms monitor capacitor and fan life, issuing alerts 30 days early.Typical UsesFans, pumps, compressors, conveyors, extruders, cranes, centrifuges, packaging machines, battery-drying lines, petrochemical, metallurgy, cement, data-center cooling and metro ventilation.AB PowerFlex combines built-in EtherNet, modular hardware and high-efficiency algorithms to save panel space, speed integration, cut energy use and enable predictive maintenance.
