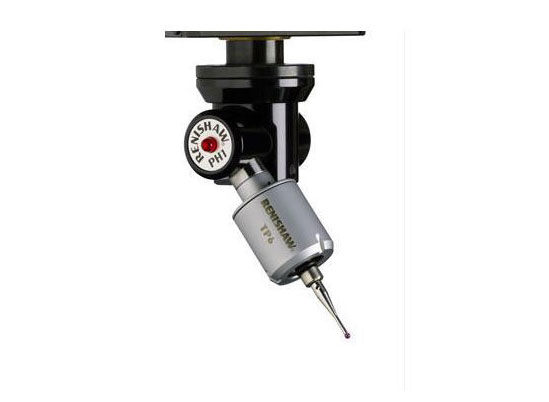

A swivel head, adjustable in both the A and B axes, with limited overtravel protection. The probe is offset from the mounting shank Z axis. Number of Probe Sockets: 1Probe Status Indication: 1 LEDCable Connection: 5 pin DIN 180 degree socketOvertravel Break Load: Adjustable from 0.02 kgf(0.044 lbf) to locked solidA Axis Indexing: Swivel of 115 degrees lockedwith hexagonal key (3mm A/F)B Axis Indexing: 15 degree steps through 360 degreesWeight: 125 g (0.28 lb)Mounting Options: Shank to suit your CMM PH1 is not compatible with PEL 2/3(Shown with PEL1 adaptor, TP2 probe and Stylus – Not Included)
