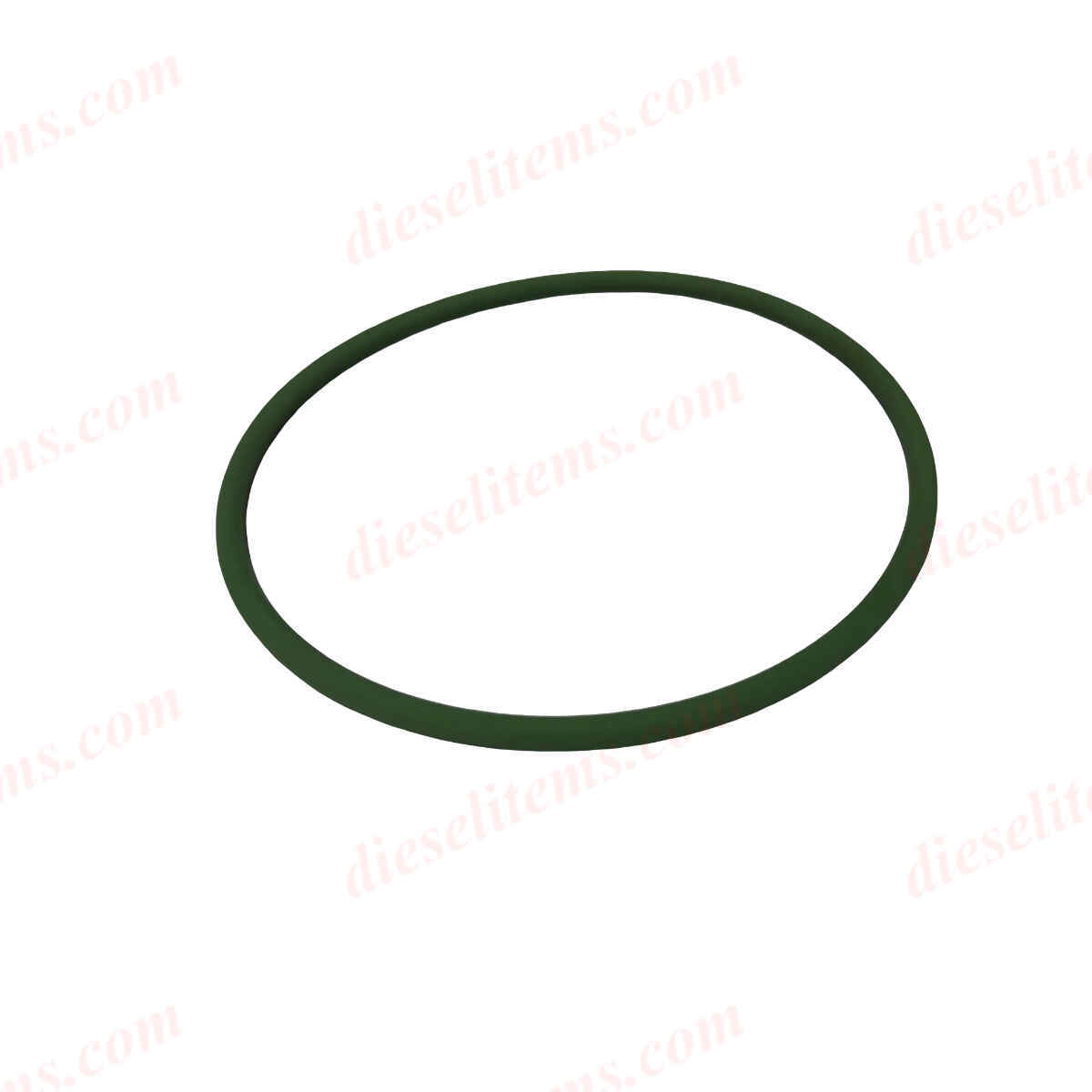

Description Bosch VE Injection Pump Head O-ring Seal NIP 2-460-210-012 Note: OE Bosch VE Injection Pump Head O-ring Seal NIP 2-460-210-012, 2460210012. Part numbers: 2-460-210-012, 2460210012 Want to Change your head seal without disassembling the pump? With the pump removed from the engine, take off the solenoid, the mounting bracket and all but two screws (picture 1) Slowly loosen the other two screws evenly till you have access to the o-ring (picture 2). If the head does not rise as you loosen the screws you may have to pry it up with a thin screw driver. The plan is to not remove the last two screw all the way as keeping these screws threaded will help keep everything in alignment. Using a probe or other sharp object pull out and cut the old o-ring to discard it. (picture 3) Grease the new o-ring and very gently stretch it over the head and allow it to rest on the two screws. (picture 4) Loosen one bolt at a time until the o-ring drops in. Once the o-ring drops in be sure to re-thread which ever bolt you were on immediately to ensure you don’t mess up the alignment (picture 5). Easy enough, right? The key is, you must allow gravity to keep the head pulled down while allowing the 2 screws to keep it centered. Remember, if you are not sure if this Bosch VE Injection Pump Head O-ring is right for your application, please send us your complete pump model number. We are here to help! You can call us, use our contact form, or even send us an email directly (
