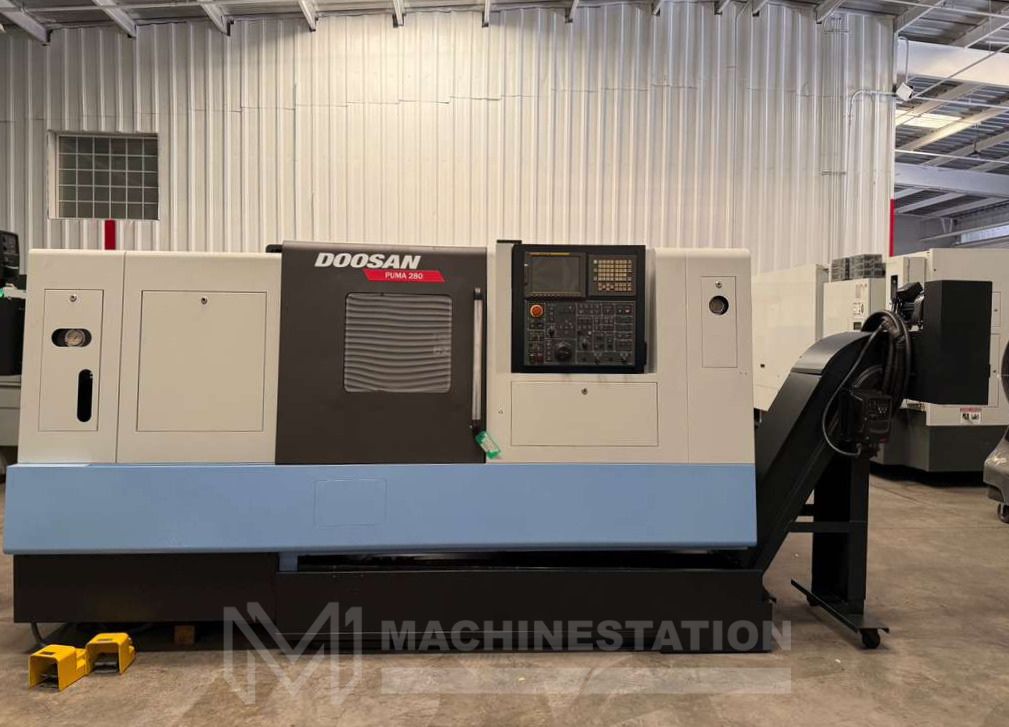

Doosan Puma 280 CNC Turning Center - 12" Chuck Lathe

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* SKU: 113503 Make: Doosan Puma 280 Condition: Used – Good Equipped With: Fanuc 21i-TB Series CNC Control Heavy Duty Box Way Contruction 12″ 3-Jaw Samchully HH-212 Hydraulic Chuck A2-8 Spindle Nose 12 Station Automatic Turret Tool Presetter Hydraulic Tailstock and Quill Rigid Tapping PCMCIA Card Interface Foot Switches Coolant System Chip conveyor (1) Boring Tool Holder, (4) Turning Tools Are Mounted on Turret (As shown in the images) Capacity: Max Turning Diameter: 16.53″ Max Turning Length: 25.90″ Swing Over Bed: 24.80″ Swing Over Saddle: 19.68″ Max Bar Capacity: 2.99″ Travel: X Axis Travel: 9.52″ Z Axis Travel: 26.77″ Rapid Traverse X Axis: 787 IPM Rapid Traverse Z Axis: 945 IPM Spindle: Spindle Nose: A2-8 Spindle Bore: 3.38″ Spindle Speed: 3500 RPM Spindle Motor: 25 HP Turret: Turret Capacity: 12 Stations Turret Index Time: 0.15 Second OD Tool Size: 1.0″ x 1.0″ Boring Tool Diameter: 2.0″ Tailstock: Tailstock Taper: MT- 5 Tailstock Quill Dia.: 4.0″ Tailstock Quill Travel: 4.0″ General: Power: 36.52 kva / 220v / 3-Phase / 50/60 Hz Overall Dimensions: 135″ x 66″ x 68″ High Weight: 10,360 lbs
