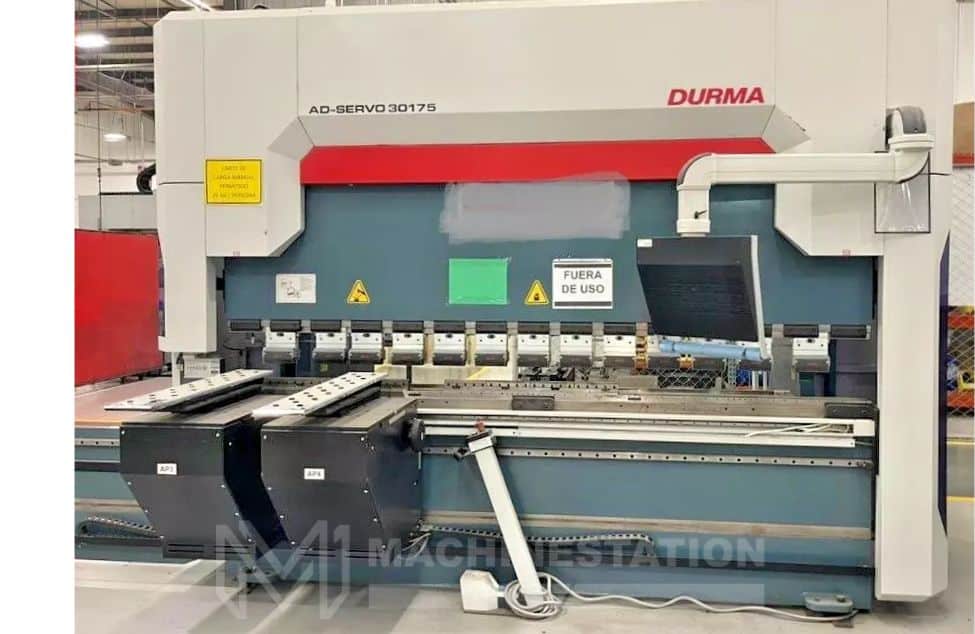

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* SKU: 115082 Make: Durmazlar Model: ADS 30175 Condition: Used – Excellent (As Like New) Features: Durma DA-69T CNC Control 3D and 2D Graphical Touch Screen Programming Mode (5) Axis Back Gauge Linear Guide Front Sheet Support Crowing System Laser Guarding System Side & Rear Safety Guards Pedestal Control with Electric Foot Pedal Specifications: Capacity: 175 Tons Maximum Bending Length: 120″ Inside Distance Between Side Frames: 102.3″ Stroke Length: 10.43″ Daylight: 20.86″ Throat Depth: 17.7″ Rapid Speed Y-Axis: 7.9” Per Second Working Speed Y-Axis: 0.5” Per Second Retraction Speed Y-Axis: 7.9” Per Second Back Guage Speed X-Axis: 19.68” Per Second Back Guage Speed R-Axis: 13.77” Per Second Working Speed Z-Axis: 39.4” Per Second Working Distance Z-Axis: 78.3” Table Height: 35.43” Table Width: 4.09” General: Power Source: 440 V, Three Phase, 60 Hz Motor: 18.5 Kw Overall Dimensions: 221″ X 101″ x 108″ High Approx. Weight : 26,235 lbs Approx.
