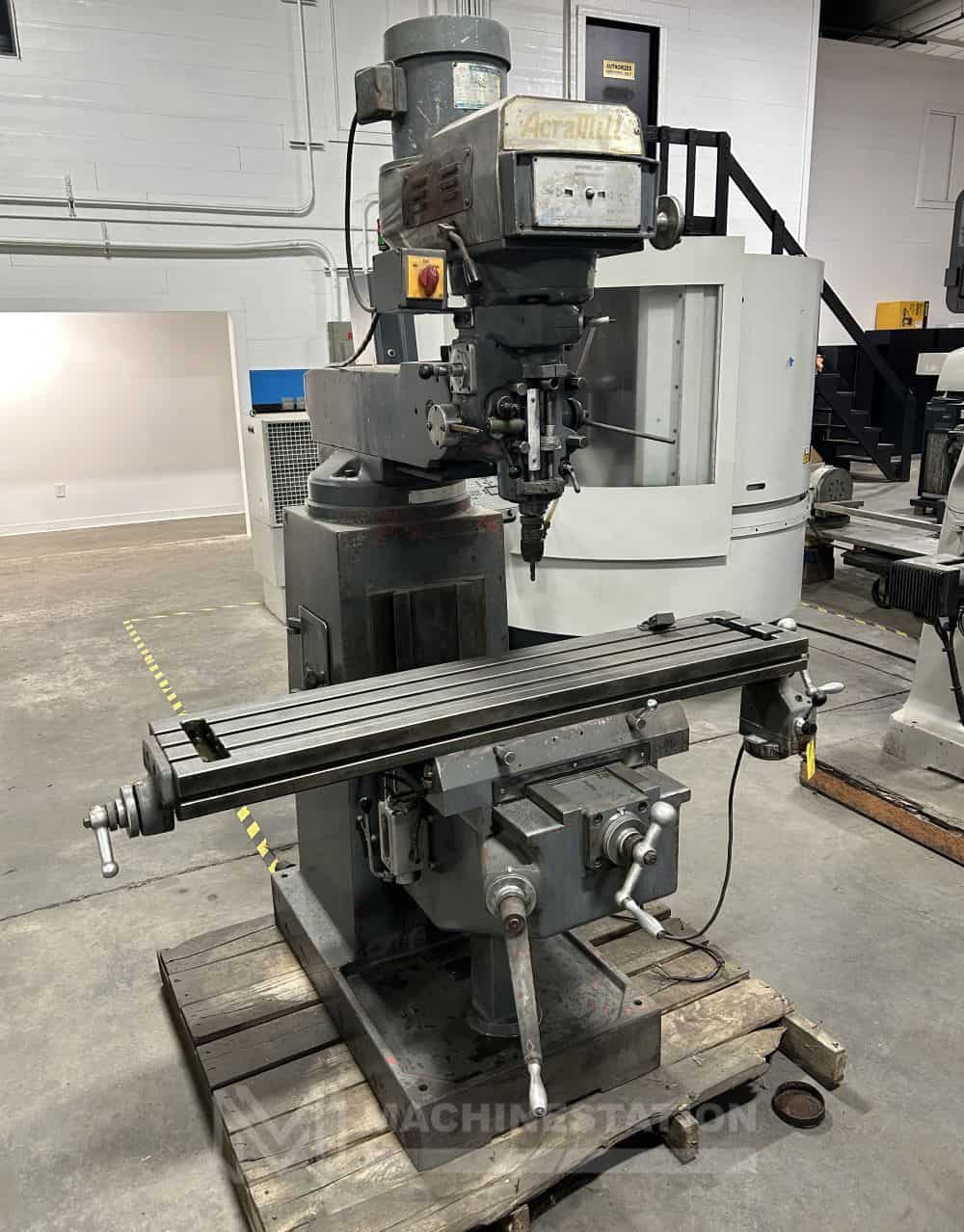

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* SKU: 112539 Make: Acra Model: 2V Condition: Used – Good Features: Machine base, knee and table are cast iron construction Slideways are hardened and precision ground Milling head can be tilted 90 degrees either right or left side X, Y, Z axis are dovetail way X, Y, Z axis are transmitted by precision feed lead screw with double nut Capacity: Maximum Table Longitudinal Travel (X-Axis): 35.5″ Maximum Table Cross Travel (Y-Axis): 12.5″ Maximum Knee Travel (Z-Axis): 16″ Maximum Overarm Travel: 16.25″ Maximum Spindle Travel: 5″ Drilling Capacities: (Cast Iron) 0.75″ | (Steel) 0.62″ Face Milling: 3” End Milling: 0.75″ Table: Working Surface: 9″ x 49″ T-Slot Number, Size: 3, 5/8″ Maximum Weight of Workpiece: 550 Lbs. Spindle: Number of Speeds: Variable Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM Spindle Taper: R8 Diameter of Quill: 3-3/8″ Collet Capacity: 1/8″ ~ 5/8″ Spindle Feeds: .0015/.0003/.0006 inch/rev. Spindle Travel: 5” Spindle to Table: 2-3/4” ~ 17-1/2” Spindle to Column: 5” ~ 17-3/8” Horsepower: 2 HP General: Overall Machine Dimensions (WxDxH): 66″ x 63″ x 86″ Electrical: 220/440V, 3 phase, 60 Hz Net Weight (approx.): 2300 lbs
