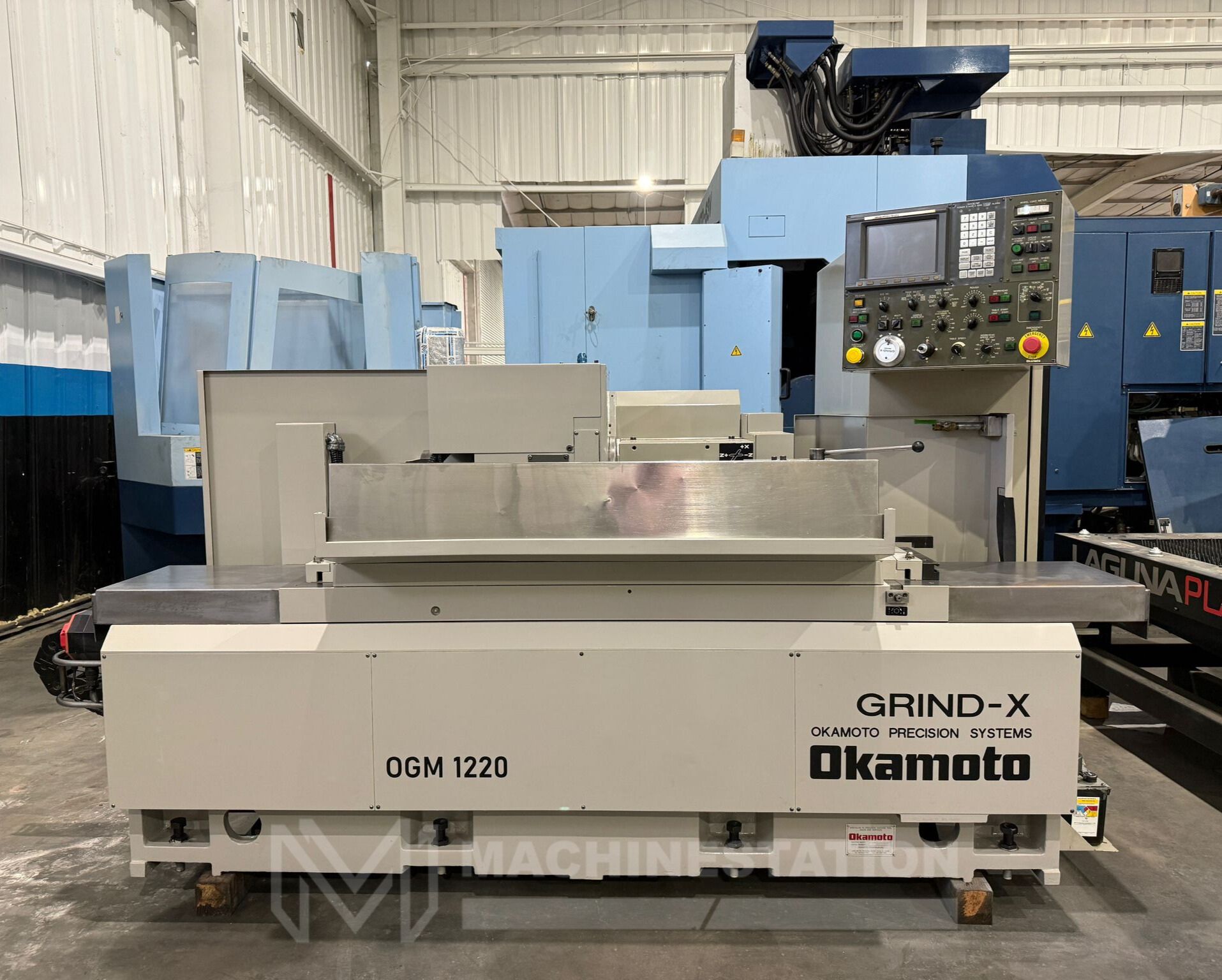

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: OKAMOTO Model: OGM 12-20PB Year: 2007 Condition: Used – Good Features: Fanuc Oi-TB CNC Control Absolute/Incremental Combined Programming Swivelable Table MPG Control Inch / Metric Conversion Tailstock Auto Reference Point Return Coolant System Transformer Capacity: Max Grinding Diameter: 12.0″ Max Grinding Length: 19.68″ Max Weight Between Centers: 330 lbs Swing Over Table: 12.6″ Distance Between Centers: 20.0″ Grinding Wheel: Speed: 1845 RPM wheel Size: 16″ x 2″ x 5″ Grinding Wheel Spindle Motor: 5 HP Wheelhead: Total Stroke (X-Axis): 11.8″ Automatic Infeed: 0.00001” – 0.004″ Minimum Increment: 0.00001” Continuous Feedrate: 160 IPM Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″ Wheelhead Rapid Retract: 1.5″ Grind Feed Override: 0 – 200% Workhead: Center Taper: MT-4 Speed: 10 – 500 RPM Motor: 1 HP Table: Maximum Table Travel: 34″ Swivel Angle: 0 to .10° Traverse Speed: 0 – 400 IPM Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″ Rapid Feedrate: 400 IPM Feedrate Override: 0 – 200% Tailstock: Tailstock Quill Stroke: 1.2″ Tailstock Taper: MT-4 General: Power Source: AC 200 V Three Phase 60 Hz Power Requirement: 20 kva Overall Dimensions: 143″ x 76″ x 67″ High Weight : 7700 lbs Approx.
