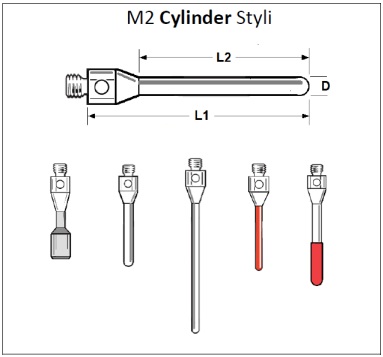

M2 Thread Cylinder Styli – By Diameter Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (ea) M2 - 0.3 - 10 - CYL - CRef: 708Tungsten Carbide0.3mm (.012”)10mm(.394”)3mm(.118”)$209 M2 - 0.5 - 15 - CYL - CRef: 709Tungsten Carbide0.5mm(.020”)15mm(.591”)8mm(.315”)$180 M2 - 0.5 - 20 - CYL - CRef: TM2 - 0520 - BCTungsten Carbide0.5mm(.020”)20mm(.787”)15mm(.591”)$265 M2 - 0.6 - 8 - CYL - CRef: TM2 - 0608 - BCTungsten Carbide.06mm(.024”)8mm(.315”)3mm(.118”)$160 M2 - 0.7 - 15 - CYL - CRef: TM2 - 0715 - BCTungsten Carbide0.7mm(.028”)15mm(-0.591)10mm(.394”)$110 M2 - 0.7 – 20 - CYL - CRef: TM2 - 0720 - BCTungsten Carbide0.7mm(.028”)20mm(.787”)15mm(-0.591)$110 Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (ea.) M2 - 1.0 - 15 - CYL - CRef: TM2 - 1015 - BCTungstenCarbide1.0mm(.039”)15mm(.591”)10mm(.394”)$125 M2 - 1.0 - 15.5 - CYL - RRef: 815RRuby1.0mm(.039”)15.5mm(.61”)8.5mm(.335”)$125 M2 - 1.0 - 20.5 - CYL - SRef: 710 - 20Tool Steel1.0mm (.039”)20.5mm(.807”)14.15mm(.557”)$60 M2 - 1.0 - 20.5 - CYL - CRef: 710 - 20CTungstenCarbide1.0mm(.039”)20.5mm(.807”)14.15mm(.557”)$88 M2 - 1.0 - 30 - CYL - CRef: TM2 - 1030 - BCTungstenCarbide1.0mm(.039”)30mm(1.181”)23mm(.906”)$135 M2 - 1.0 - 36 - CYL - CRef: TM2 - 1036 - BCTungstenCarbide1.0mm(.039”)36mm(1.417”)29mm(1.142”)$140 M2 - 1.0 - 40.5 - CYL - SRef: 710 - 40Tool Steel1.0mm(.039”)40.5mm(1.59”)34.15mm(-1.344)$60 M2 -1.0 - 40.5 - CYL - CRef: 710 - 40CTungstenCarbide1.0mm(.039”)40.5mm(1.59”)34.15mm-1.344$88 Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (aa.) M2 - 1.5 - 11 - CYL -CRef: TM2-1511-CYLTungsten Carbide1.5mm(.059”)11mm(.433”)1mm(.039”)$35 M2 - 1.5 - 15.75 - CYL -RRef: 816RRuby1.5mm(.059”)15.75mm(.62”)8.75mm(.344”)$130 M2 - 1.5 - 20.75 - CYL - SRef: 711 - 20Tool Steel1.5mm(.059”)20.75mm(.817”)14.4mm(.567”)$60 M2 - 1.5 - 20.75 - CYL - CRef: 711 - 20CTungstenCarbide1.5mm(.059”)20.75mm(.817”)14.4mm(.567”)$88 M2 - 1.5 - 40.75 - CYL - SRef: 711 - 40Tool Steel1.5mm(.059”)40.75mm(1.604”)34.4mm(1.354”)$60 M2 - 1.5 - 40.75 - CYL - CRef: 711 - 40CTungstenCarbide1.5mm(.059”)40.75mm(1.604”)34.4mm(1.354”)$88 Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (ea). M2 - 2.0 - 16 - CYL - CRef: TM2 - 2016 - BCTungsten Carbide2.0mm(.079”)16mm(.63”)9mm(.354”)$79 M2 - 2.0 - 21 - CYL - SRef: 712 - 20Tool Steel2.0mm(.079”)21mm(.826”)14.65mm(.577”)$60 M2 - 2.0 - 21 - CYL - CRef: 712 - 20CTungsten Carbide2.0mm(.079”)21.mm(.826”)14.65mm(.577”)$88 M2 - 2.0 - 41 - CYL - SRef: 712 - 40Tool Steel2.0mm(.079”)42mm(1.65”)34.65mm(1.36”)$60 M2 - 2.0 - 41 - CYL - CRef: 712 - 40CTungsten Carbide2.0mm(.079”)42mm(1.65”)34.65mm(1.36”)$88 M2 - 2.0 - 48 - CYL - CRef: TM2-2048-BCTungsten Carbide2.0mm(.079”)48mm(1.89”)41mm(1.61”)$105 Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (eac. M2 - 2.0 - 21 - CYL - RRef: 382RRuby2.0mm(.079”)21mm(.827”)7.2mm(.283”)$108 M2 - 2.0 - 25 - CYL - RRef: TM2 - 2025 - BRuby2.0mm(.079”)25mm(.984”)7.2mm(.283”)$118 M2 - 2.0 - 35 - CYL - RRef: TM2 - 2035 - BRuby2.0mm35mm7.2mm$118 Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (ea) M2 – 3.0 - 13 - CYL -CRef: TM2-3013-CYLTungsten Carbide3.0mm (.118”)13mm(.512”)3.5mm(.138”)$35 Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (ea) M2 - 4.0 - 20 - CYL - RRef: TM2 - 4020 - BRuby4.0mm (.157”)20mm(.787”)10mm(.394”)$138 M2 - 4.0 - 22 - CYL - RRef: TM2 - 4022 - BRuby4.0mm (.157”)22mm(.866”)10mm(.394”)$128 M2 Precision Ball-Ended Cylinder Styli Product Part NumberCylinder MaterialCylinder Diam.(D)Overall Length (L1)Working Length (L2)Cost (ea) M2 - 2.0 - 40 CYL - BCRef: 290Ceramic / Ruby2.0mm (.079”)40mm(1.575”)30mm(1.201”)$134
