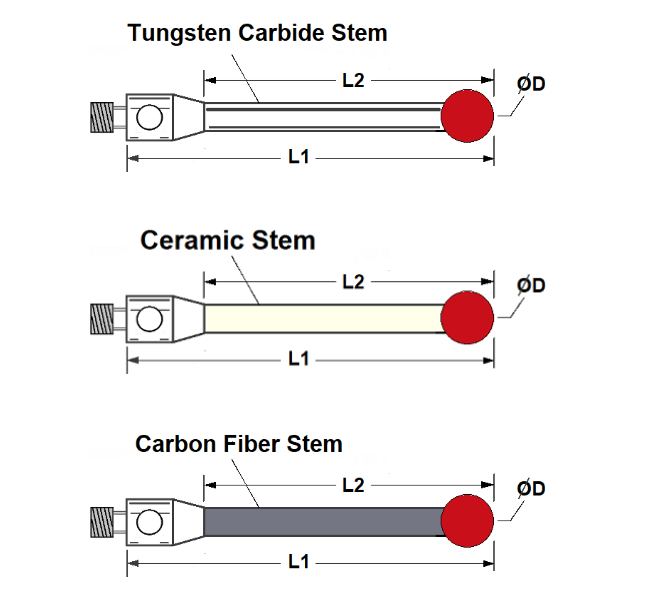

Length Measurement to “End of Ball for” for all Ball DiametersBall Material Designation (M): R = Ruby, C= Carbide, Sn = Silicon Nitride, Zn = Zirconia, Dm = Diamond*Stem Materials Include: Steel, Tungsten Carbide, Ceramic and Carbon Fiber 5.0mm Diameter Ball Styli with “Tungsten Carbide Stem”Ball(M): Ruby, Silicon Nitride, Zirconia Product PartNumber Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 5.0 - 22.5 - (M)Carbide StemRef: A -5003 -00465.0mm(.197")22.5mm(.866")16.5mm(.65")$43$80$80 M2 - 5.0 - 32.5 - (M)Carbide StemRef: A -5003 -00475.0mm(.197")32.5mm(1.28")26.5mm(1.043")$48$92$92 M2 - 5.0 - 42.5 - (M)Carbide StemRef: A -5003 -00485.0mm(.197")42.5mm(1.673")36.5mm(1.437")$48$90$90 M2 - 5.0 - 52.5 - (M)Carbide StemRef: A -5003 -00495.0mm(.197")52.5mm(2.067")46.5mm(1.831")$52$90$90 5.0mm Diameter Ball Styli with “Ceramic Stem”Ball(M): Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 5.0 - 32.5 -C - (M)Ceramic StemRef: A -5003 -47795.0mm(.197")32.5mm(1.28")26.5mm(1.043")$80$110$110 M2 - 5.0 - 52.5 -C - (M)Ceramic StemRef: A -5003 -00695.0mm(.197")52.5mm(2.067")46.5mm(1.831")$85$120$125 5.0mm Diameter Ball Styli with “Carbon Fiber Stem”Ball(M): Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 5.0 - 32.5 - CF - (M)Ceramic StemRef: TM2 - 5032.5 - G5.0mm(.197")32.5mm(1.28")26.5mm(1.043")$100$110$110 M2 - 5.0 - 42.5 - CF - (M)Carbon Fiber StemRef: TM2 -5042.5 -G5.0mm(.197")42.5mm(1.673")36.5mm(1.437")$105$120$125 M2 - 5.0 - 52.5 - CF - (M)Carbon Fiber StemRef: A -5003 -22865.0mm(.197")52.5mm(2.067")45.5mm(1.791")$105$120$125 M2 - 5.0 - 70 - CF - (M)Carbon Fiber StemRef: TM2 -5070 -G5.0mm(.197")70mm(2.756")63mm(2.48")$85$115$115 M2 - 5.0 - 77.5 - CF -(M)Carbon Fiber StemRef: A -5003 -47855.0mm(.197")77.5mm(3.051")70.5mm(2.776")$130$130$130 M2 - 5.0 - 102.5 -CF -(M)Carbon Fiber Stem Ref: A -5003 -22905.0mm(.197")102.5mm(4.035")95.5mm(3.76")$145$150$150 6.0mm Diameter Ball Styli with “Tungsten Cabide Stem”Ball(M): Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 6.0 - 13 - (M)Carbide StemRef: TM2 -60136.0mm(.236")13mm(.512")8.0mm(.315")$44$75$75 M2 - 6.0 - 25 - (M)Carbide StemRef: TM2 -60256.0mm(.236")25mm(.984")18mm(.709")$80$110$110 M2 - 6.0 - 30 - (M)Carbide StemRef: TM2 -60306.0mm(.236")30mm(1.181")23mm(.906")$72$102$102 M2 - 6.0 - 50 - (M)Carbide StemRef: TM2 -60506.0mm(.236")50mm(1.969")43mm(1.654")$80$110$120 6.0mm Diameter Ball Styli with “Ceramic Stem”Ball(M): Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 6.0 - 33 - C - (M)Ceramic StemRef: A -5003 -47806.0mm(.236")33mm(1.299")26mm(1.024")$90$120$120 M2 - 6.0 - 53 - C - (M)Ceramic StemRef: A -5003 -04706.0mm(.236")53mm(2.087")46mm(1.811")$95$130$130 6.0mm Diameter Ball Styli with “Carbon Fiber Stem”Ball (M) Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 6.0 - 33 - CF - (M)Carbon Fiber StemRef: A - 5003 - 47826.0mm(.236")33mm(1.299")26mm(1.024")$105$120$120 M2 - 6.0 - 43 - CF - (M)Carbon Fiber StemRef: TM2 -6043 -G6.0mm(.236")43mm(1.693")40mm(1.575")$105$120$120 M2 - 6.0 - 53 - CF - (M)Carbon Fiber StemRef: A 5003 - 22876.0mm(.236")53mm(2.087")46mm(1.811")$110$120$120 M2 - 6.0 - 60 - CF - (M)Carbon Fiber StemRef: TM2 - 6060 -G6.0mm(.236")60mm(2.362")53mm(2.087")$115$140$140 M2 - 6.0 - 78 - CF - (M)Carbon Fiber StemRef: A -5003 -47866.0mm(.236")78mm(3.071")71mm(2.795")$145$140$140 M2 - 6.0 - 103 - CF - (M)Carbon Fiber StemRef: A -5003 - 22916.0mm(.236")103mm(4.055")96mm(3.78")$150$140$140 8.0mm Diameter Ball Styli with “Tungsten Carbide Stem”Ball (M) Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 8.0 - 20 - (M)Carbide StemRef: 8.0mm(.315")20mm(.787")13.0mm(.512")$95$125$125 M2 - 8.0 - 25 - (M)Carbide StemRef: A - 5000 -4158 8.0mm(.315")25mm(.984")18.0mm(.709")$98$130$130 8.0mm Diameter Ball Styli with “Carbon Fiber Stem”Ball (M) Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 8.0 - 50 - CF - (M)Carbon Fiber StemRef: 8.0mm(.315")50mm(1.969")43mm(1693")$88$118$118 M2 - 8.0 - 60 - CF - (M)Carbon Fiber StemRef: 8.0mm(.315")60mm(2.362")53mm(2.087")$88$118$118 M2 - 8.0 - 104 - CF - (M)Carbon Fiber StemRef: 8.0mm(.315")104mm(2.362")53mm(2.087")$102$132$132
