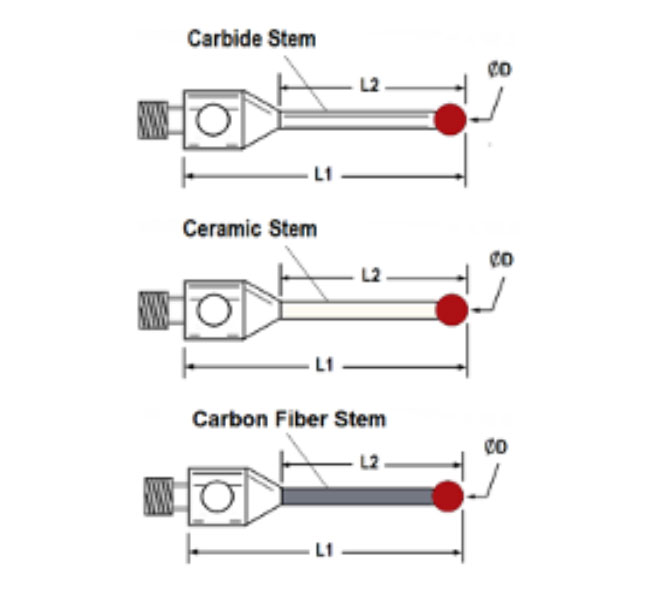

Length Measurement to “End of Ball for” for ˂ 1mm Ball DiametersBall Material Designation (M): R = Ruby, C= Carbide, Sn = Silicon Nitride, Zn = Zirconia, Dm = Diamond*Stem Materials Include: Steel, Tungsten Carbide, Ceramic and Carbon Fiber 3.0mm Diameter Ball Styli with “Tungsten Carbide Stem” Ball(M): Ruby, Silicon Nitride, Zirconia Product PartNumber Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 3.0 - 11.5 -(M)Carbide StemRef: TM2 -3011.53.0mm(.118")11.5mm(.453")6.5mm(.256")$48$78$78 M2 - 3.0 - 21.5 -(M)Carbide StemRef: A -5003 -09383.0mm(.118")21.5mm(.846")16.5mm(.65")$48$78$78 M2 - 3.0 - 31.5 -(M)Carbide StemRef: A -5003 -00403.0mm(.118")31.5mm(1.24")24.5mm(.965")$48$78$78 M2 - 3.0 - 41.5 -(M)Carbide StemRef: A -5003 -00413.0mm(.118")41.5mm(1.634")34.5mm(1.358")$48$80$80 M2 - 3.0 - 51.5 -(M)Carbide StemRef: A -5003 -00423.0mm(.118")51.5mm(2.028")44.5mm(1.752")$44$85$85 M2 - 3.0 - 63 -(M)Carbide StemRef: TM2 -30633.0mm(.118")63mm(2.483")56mm(2.205")$55$85$85 M2 - 3.0 - 75 -(M)Carbide StemRef: TM2 -30753.0mm(.118")75mm(2.953")68mm(2.677")$57$87$87 3.0mm Diameter Ball Styli with “Ceramic Stem” Ball(M): Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 3.0 - 31.5 -C - (M)Ceramic StemRef: A -5003 -41773.0mm(.118")31.5mm(1.24")24.5mm(.965")$80$100$100 M2 - 3.0 - 41.5 -C - (M)Ceramic StemRef: TM2 -3041.5 -C3.0mm(.118")41.5mm(1.634")34.5mm(1.358")$70$100$100 M2 - 3.0 - 51.5 -C- (M)Ceramic StemRef: A -5003-00643.0mm(.118")51.5mm(2.028")44.5mm(1.752")$70$100$100 M2 - 3.0 - 60 - C - (M)Ceramic StemRef: TM2 -3060 -C3.0mm(.118")60mm(2.362")53mm(2.087")$75$96$96 M2 - 3.0 - 70 - C - (M)Ceramic StemRef: TM2 -3070 -C3.0mm(.118")70mm(2.756")63mm(2.48")$75$105$105 3.0mm Diameter Ball Styli with “Carbon Fiber Stem” Ball(M): Ruby, Silicon Nitride, Zirconia Product PartNumber Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 3.0 - 31.5 - CF -(M)Carbon Fiber StemRef: TM2 -3031.5 -G3.0mm(.118")31.5mm(1.24")24.5mm(.965")$71$100$100 M2 - 3.0 -41.5 - CF - (M)Carbon Fiber StemRef: TM2 -3041.5 -G3.0mm(.118")41.5mm(1.634")34.5mm(1.358")$100$130$130 M2 - 3.0 - 50 - CF - (M)Carbon Fiber StemRef: TM2 -3050 -G3.0mm(.118")50mm(1.97")43mm(1.69")$100$130$130 4.0mm Diameter Ball Styli with “Tungsten Cabide Stem” Ball(M): Ruby, Silicon Nitride, Zirconia Product PartNumber Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 4.0 - 12 - (M)Carbide StemRef: TM2 -40124.0mm(.157")12mm(.472")6.0mm(.236")$39$52$78 M2 - 4.0 - 22 - (M)Carbide StemRef: A-5003-10294.0mm(.157")22mm(.866")17mm(.669")$39$52$78 M2 - 4.0 - 32 - (M)Carbide StemRef: A -5003 -00434.0mm(.157")32mm(1.26")25mm(.984")$48$52$70 M2 - 4.0 - 42 - (M)Carbide StemRef: A -5003 -00444.0mm(.157")42mm(1.654")35mm(1.378")$48$52$70 M2 - 4.0 - 52 - (M)Carbide StemRef: A -5003 -00454.0mm(.157")52mm(2.047")45mm(1.772")$48$52$70 4.0mm Diameter Ball Styli with “Ceramic Stem” Ball(M): Ruby, Silicon Nitride, Zirconia Product PartNumber Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 4.0 - 32 - C - (M)Ceramic StemRef: A -5003 -13704.0mm(.157")32mm(1.26")25mm(.984")$48$76$76 M2 - 4.0 - 42 - C - (M)Ceramic StemRef: TM2 -4042 -C4.0mm(.157")42mm(1.654")35mm(1.378")$75$105$105 M2 - 4.0 - 52 - C - (M)Carbide StemRef: A -5003 -00654.0mm(.157")52mm(2.047")45mm(1.772")$68$98$98 M2 - 4.0 - 60 - C - (M)Ceramic StemRef: TM2 -4060 -C4.0mm(.157")60mm(2.362")53mm(2.087")$70$100$100 M2 - 4.0 - 90 - C - (M)Ceramic StemRef: TM2 -4090 -C4.0mm(.157")90mm(3.543")83mm(3.268")$85$115$115 M2 - 4.0 - 100 - C - (M)Ceramic StemRef: TM2 -40100 -C4.0mm(.157")100mm(3.937")93mm(3.661")$95$125$125 4.0mm Diameter Ball Styli with “Carbon Fiber Stem” Ball(M): Ruby, Silicon Nitride, Zirconia Product Part Number Ball Diam. (D) Overall Length (L1)EWL Length (L2)Ruby Ball (R)Silicon Nitride (SN)Zirconia (ZN) M2 - 4.0 - 32 - CF - (M)Carbon Fiber StemRef: A -5003 -42414.0mm(.157")32mm(1.26")25mm (.984")$95$120$120 M2 - 4.0 - 42 - CF - (M)Carbon Fiber StemRef: TM2-4042 -G4.0mm(.157")42mm(1.654")37mm(1.457")$95$120$120 M2 - 4.0 - 52 - CF - (M)Carbon Fiber StemRef: A -5003 -22854.0mm(.157")52mm(2.047")45mm(1.772")$95$115$115 M2 - 4.0 - 60 - CF - (M)Carbon Fiber StemRef: TM2 -4060 -G4.0mm(.157")60mm(2.362")53mm(2.087")$85$115$115 M2 - 4.0 - 77 - CF - (M)Carbon Fiber StemRef: A -5003 -47844.0mm(.157")77mm(3.031")70mm(2.756")$130$140$140 M2 - 4.0 - 90 - CF - (M)Carbon Fiber StemRef: TM2 -4090 -G4.0mm(.157")90mm(3.543")83mm(3.268")$105$135$135 M2 - 4.0 - 100 - CF - (M)Carbon Fiber StemRef: TM2 -40100 -G4.0mm(.157")100mm(3.937")93mm(3.661")$110$130$140 M2 - 4.0 - 102 - CF - (M)Carbon Fiber StemRef: A -5003 -22894.0mm(.157")102mm(4.016")95mm(3.74")$135$135$140
