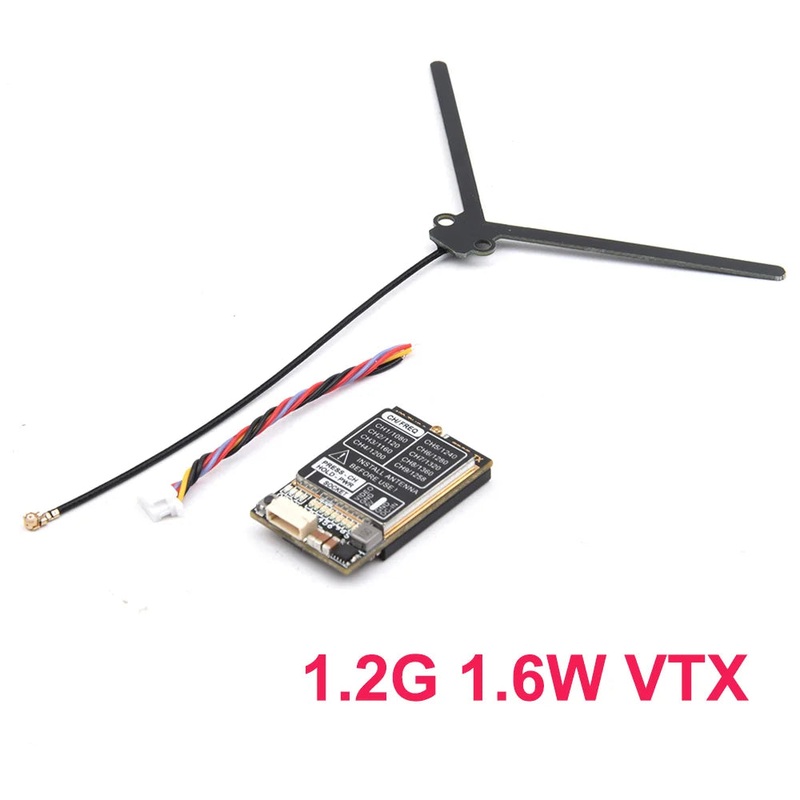

1.2GHz 1.3GHz 1.6W 9CH VTX – 25mW/1600mW 7-28V FPV Transmitter Module for RC FPV Long Range Airplane Drone

1.2GHz 1.3GHz 1.6W 9CH VTX – 25mW/1600mW 7-28V FPV Transmitter Module Overview The 1.2GHz 1.3GHz 1.6W 9CH VTX is a high-performance FPV video transmitter module designed for long-range RC airplanes and drones. With a transmission power of up to 1.6W and support for 9 channels in the 1.2GHz-1.3GHz frequency band, this VTX delivers stable, interference-resistant video signals over long distances. The transmitter features button controls, LED indicator lights, and memory functions to save transmission power and frequency settings, making it user-friendly and efficient. Key Features Button Control and LED Indicator Lights: Power Control: Four green LEDs indicate the power level. Long-press the button to switch between power settings, with the system saving the current setting after a power outage. Frequency Control: Nine red LEDs display the selected frequency. Short-press the button to switch to the next frequency, with a memory function to save the selected frequency after powering off. High-Performance Transmission: Frequency Band: Operates in the 1060-1380MHz range with excellent anti-interference and diffraction abilities. Power Output: Adjustable power levels up to 1.6W, suitable for long-range FPV applications. Custom Antenna: Comes with a custom 1.2GHz “Y” shaped antenna for improved transmission performance. User-Friendly Interface: 6P 1.0 Socket Definition: Pin 1: Power input (DC7-28V) Pin 2: Ground Pin 3: Empty Pin 4: 5V output Pin 5: Ground Pin 6: Video input Specifications Parameter Details Frequency Band 1060-1380MHz Channels 9 Channel Frequencies 1080 / 1120 / 1160 / 1200 / 1240 / 1280 / 1320 / 1360 / 1258 (MHz) Audio Sub-Carrier 6.5MHz / 6.0MHz Modulation Type FM Frequency Control PLL Audio Sub-Carrier Control PLL Frequency Stability 100KHz (Typical) Frequency Precision 200KHz (Typical) Signal-to-Noise Ratio 70dBc Channel Carrier Error 1dB Antenna Port Impedance 50 Ohms Input Format NTSC or PAL Video Input Level 1V 0.2Vp-p type Audio Input Level 1V 0.2Vp-p type Operating Temperature -10C to 60C Input Power Supply DC7-28V Output Voltage DC7-28V; DC5V Dimensions 37mm (L) x 22mm (W) x 7mm (H) Net Weight 10.5g (including Y antenna) Applications RC Airplanes and Drones: Perfect for long-range FPV video transmission in open or challenging terrains. Multi-Environment Usage: Reliable in urban, rural, or complex landscapes with strong anti-interference performance. Custom FPV Systems: Suitable for integrating into custom setups with flexible power and frequency options. Package Includes 1 x 1.2GHz 1.6W VTX Transmitter Module 1.2GHz, 1.3GHz, 1.6W, 9CH VTX: 1240MHz Ch3 iO, 800/700mHz Ciiuiobo, 1300MHz Ch13, 8071zo Cirouizer, 03ctto Czod, Ah Tnlt Ubc One Ber, 8852 Egi El Ioct The 1.2GHz, 1.3GHz, and 1.6W VTX supports 9 channels: Ch5/1240MHz, Ch6/1280MHz, Ch7/1320MHz, Ch8/360MHz, Ch9/1258MHz, Ch2/t120, Ch3/16o200, and Ch4/tUS E INSTALL before using. Power consumption is around 262mW. PWR Preset socket holds. Reviews There are no reviews yet. Be the first to review “1.2GHz 1.3GHz 1.6W 9CH VTX – 25mW/1600mW 7-28V FPV Transmitter Module for RC FPV Long Range Airplane Drone” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
