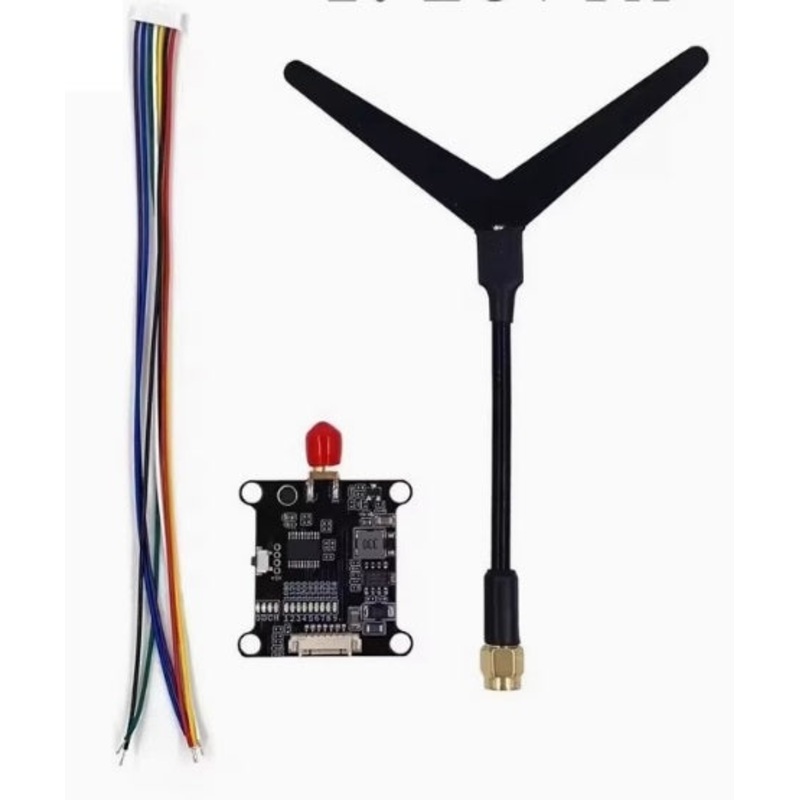

1.2G 1.3G 800mW 8CH VTX & VRX – Long Range FPV Video Transmission System

Overview The 1.2G 1.3G 800mW 8CH VTX & VRX system is designed for long-range FPV (First Person View) video transmission, providing high stability, excellent signal-to-noise ratio, and wide compatibility. Operating within the 1060~1380MHz frequency band, this system ensures smooth and clear video transmission for drones, RC vehicles, and other FPV applications. Key Features 8-Channel Support: Operates on eight selectable channels, including frequencies like 1120, 1160, 1200, 1240, 1280, 1320, 1360, and 1258MHz. High Power Output: 800mW output power ensures a long-range transmission capability with minimal interference. Advanced Stability: Frequency stability and precision at 100KHz ensure consistent performance. Wide Input Power Range: Supports DC 7-28V input, with integrated DC 5V output for compatibility with various devices. Compact Design: Slim dimensions of 35.8mm 30.5mm 8.4mm and a lightweight build of just 10g for easy integration. Specifications Item Specifications Frequency Band 1060~1380MHz Channel Count 8 Channels Channel Frequencies 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258 MHz Audio Sub-carrier 6.5MHz/6.0MHz Modulation Type FM Frequency Control PLL Audio Sub-carrier Control PLL Frequency Stability 100KHz (Typical) Frequency Precision 100KHz A/V Ratio -262dB Signal S/N (Fo3MHz) 70dBc Channel Carrier Error 1dB Antenna Port Impedance 50 Ohms Input Format NTSC or PAL Video Input Level 1Vp-p (typical) Audio Input Level 0.2Vp-p (typical) Operating Temperature -10C to 60C Input Power Supply DC 7-28V Output Voltage DC 5V Profile Dimensions 35.8mm 30.5mm 8.4mm Net Weight 10g Applications The 1.2G 1.3G VTX & VRX System is ideal for: FPV Drones: Seamless long-range video transmission for high-altitude and long-distance operations. RC Vehicles: Crystal-clear video feeds for enhanced control and experience. Surveillance Systems: Reliable and interference-resistant performance for secure monitoring. Custom FPV Projects: Compact and lightweight design ensures easy integration into various platforms. Package Includes 1x 800mW 1.2G/1.3G VTX With Antenna 1x Receiver (VRX) With Antenna Necessary installation screws and connectors for quick setup. Upgrade your FPV system with the reliable and high-performance 1.2G 1.3G 800mW 8CH VTX & VRX, ensuring smooth, interference-free video transmission for long-range applications. Long Range FPV Video Transmission System with 1.2 GHz frequency, up to 1.3 Gbps data transfer rate, 800mW output power, and 8 channels for VTX and VRX. Reviews There are no reviews yet. Be the first to review “1.2G 1.3G 800mW 8CH VTX & VRX – Long Range FPV Video Transmission System” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
