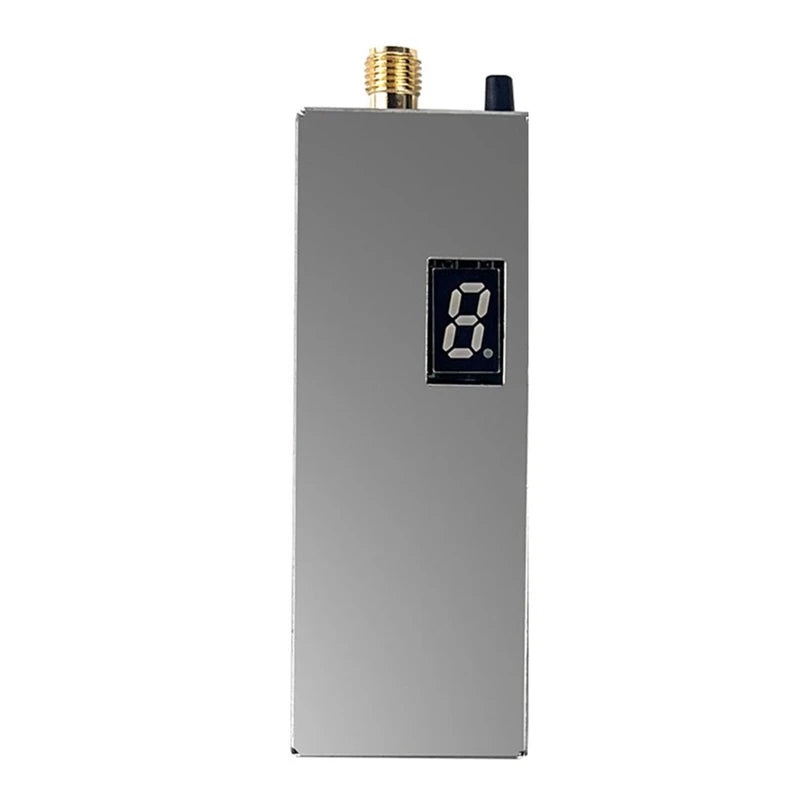

1.2G 1.3G 1.6W 8CH VTX – 0.1Mw/25Mw/800Mw/1600Mw Transmitter For Long Range FPV Drone

1.2G 1.3G 1.6W 8CH VTX – Long-Range FPV Transmitter Overview The 1.2G 1.3G 1.6W VTX is a high-performance video transmitter designed for long-range FPV applications. Offering a stable 1.6W power output without degradation due to overheating, it ensures reliable and consistent performance. Encased in a full metal shell, it provides superior shielding, reducing interference and enabling extended transmission distances. With its 8-channel frequency selection via buttons, the VTX delivers seamless operation for a variety of FPV setups. Features Stable 1.6W Power Output: Ensures long-term, consistent performance without power drops caused by excessive heat. Metal Enclosure: Fully enclosed metal casing offers enhanced shielding, preventing interference and increasing reliability in complex environments. Low-Frequency Signal: Operates in the 1.2G/1.3G band, providing excellent diffraction ability, stronger penetration, and reduced interference compared to higher frequency bands. Long-Range Capabilities: Achieves over 5KM with a 5dB omnidirectional antenna and up to 10KM with a high-gain directional antenna in open environments. Simple Channel Adjustment: Quickly switch between 8 channels using an intuitive button interface. Multi-Environment Suitability: Ideal for complex terrains and various real-world FPV applications. Specifications Parameter Details Model FPV 1.2G 1.6W VTX Output Power 1.6W Transmission Distance 5KM (up to 10KM with external antenna) Input Power 12V Current Consumption 330mA @ 1.6W Video Format NTSC/PAL Frequency Range 8 Channels (1080MHz to 1360MHz) Antenna Interface SMA Operating Temperature -20C to 60C Dimensions 77 x 25 x 8mm Weight (without antenna) 27.3 2g Package Size 150 x 200mm Frequency Channels Channel Frequency (MHz) CH1 1080 CH2 1120 CH3 1160 CH4 1200 CH5 1240 CH6 1280 CH7 1320 CH8 1360 Applications FPV Drones: Designed for long-range video transmission, ideal for racing and exploration. Complex Environments: Excels in challenging terrains with minimal interference. Aerial Photography: Provides clear and stable wireless video for professional and hobbyist setups. Package Includes 1 x 1.2G 1.6W VTX Transmitter Note: This product requires an amateur radio license to operate legally. Please verify local laws and regulations before purchase and use. Stable output of 1.6W power for a long time, without the problem of power drop due to excessive temperature. Adjust 8-channel frequencies using buttons for faster ease, with options including channel1, channel2, channel3, channel4, channel5, channel6 and channel8. Specifications: Model FPV 1.2G, 1.6W VTX. Output power: 1.6W. Transmission distance (no interference at the beach): Skm. Input power: 12V/[email protected]. Video format: NTSC/PAL. Output frequency: 8CH (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240MHz, 1280MHz, 1320MHz, 1360MHz). Parameter adjustment method: Button. Indicator light: Digital Tube (4/5/6/7/8/9/A/B). Microphone: Non. VTX protocol: Non. Antenna interface: SMA. Working temperature: -20C to 60C. Installation hole position: Non. Dimensions: 77x25x8mm. Weight (without antenna): 27.3g. Package size: 150x200mm. About Shipping and Tracking: If your tracking number has no logistics information, please contact us. We take time to carefully check product quality before shipping. Time of Shipment: Products are shipped within 1-5 weekdays after receiving customer orders. Time of Delivery: Due to force majeure factors, deliveries may be delayed. Logistics companies will not update tracking information for international packages. If your package is delayed, please contact the local post office. Protection Time Running Cut: When we finish shipping, if product protection period runs out, please extend it by contacting us. Import Duties and Taxes: These are the buyer responsibility. Feedback: When receiving products, please contact us about any issues before opening a dispute. We promise to resolve issues and give you satisfied service. The 1.2G, 1.3G, and 1.6W transmitter-receiver pair features 8 channels of high-quality video transmission for a reliable wireless connection. The 1.2G, 1.3G, and 1.6W 8CH VTX product features a compact design and high-quality components. With its advanced technology, this product offers reliable performance and excellent signal strength. Reviews There are no reviews yet. Be the first to review “1.2G 1.3G 1.6W 8CH VTX – 0.1Mw/25Mw/800Mw/1600Mw Transmitter For Long Range FPV Drone” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
