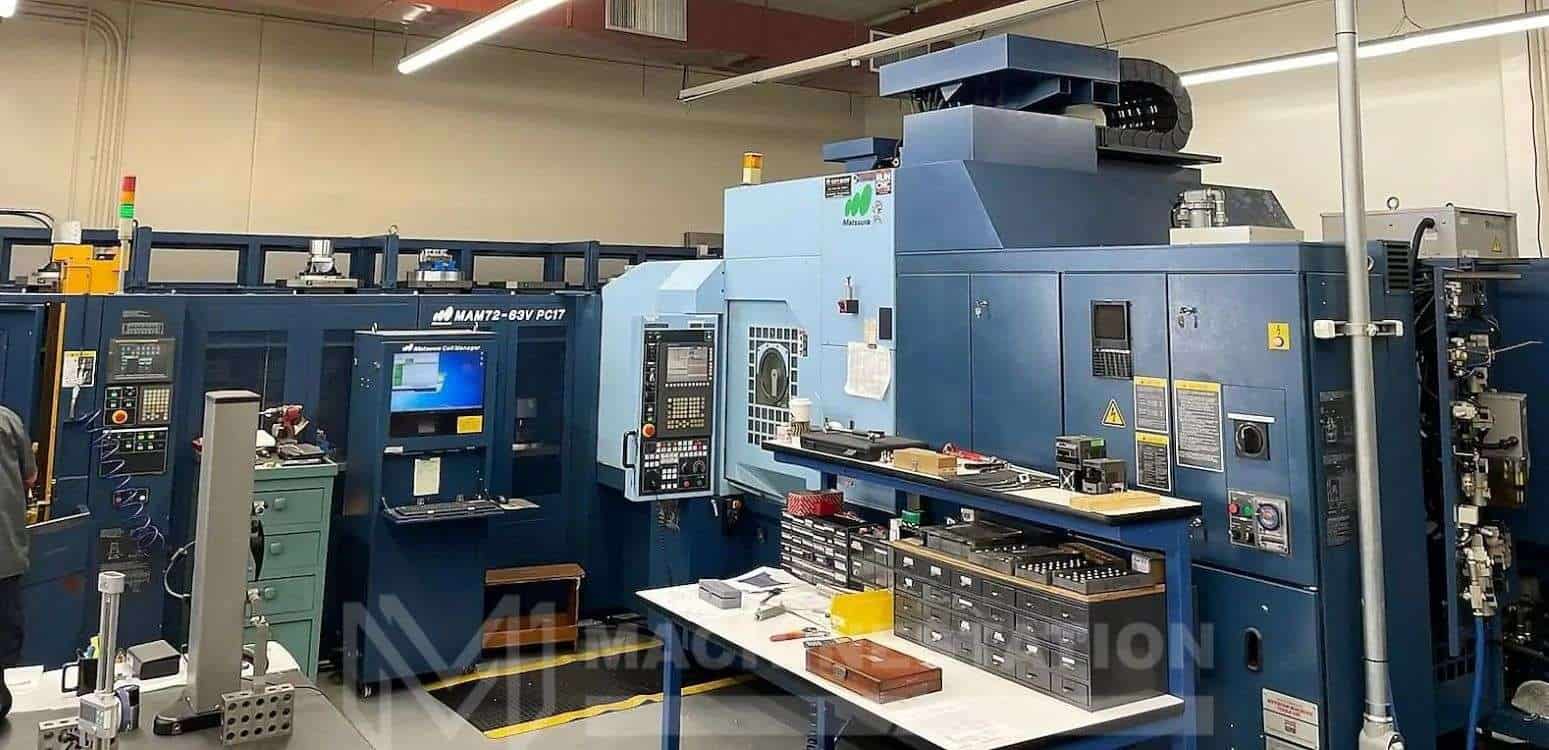

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: Matsuura Model: MAM72-63V PC17 Year: 2005 Condition: Used – Good Features: Fanuc G-Tech 30i Series CNC Control 17 Pallets Cell System NC Programmable Swiveling Trunnion Table 19.8” x 19.8” 20,000 RPM High Speed Spindle 1000 psi Through Spindle Coolant 240 Station Automatic Tool Changer Laser Tool Measure/Tool Breakage Detection Probing System Tool Life Management Coolant Shower System Linear Scales (X,Y,Z) Axis Rigid Tapping Broken Tool Detection Chip Conveyor Travels: X Axis: 29.92″ Y Axis: 33.26″ Z Axis: 25.98″ A Axis: 240° ( 120°/– 120°) ( Table Tilt ) C Axis: 360° ( Table Rotate ) Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute Pallet: Number of Pallets: 17 Station Pallet Surface: 19.68″ x 19.68″ Max Workpiece Diameter: 28.34″ Max Workpiece Height: 17.71″ Max Weight on Table: 770 lbs Spindle: Taper Size: BT-40 Speed Range: 20,000 RPM Spindle Power: 30 HP Automatic Tool Changer: Capacity: 240 Tools Taper: BT-40 Max Tool Diameter: 3.77″ Max Tool Length: 13.77″ Max Tool Weight: 22 lbs. General: Air Required: 80 psi 4 scfm Power: 220v / 66FLA / 3-Phase Overall Dimensions: 249″ X 153″ X 126″ High (Only Machine without Pallet Cell System) Weight: 31,967 lbs Approx.
