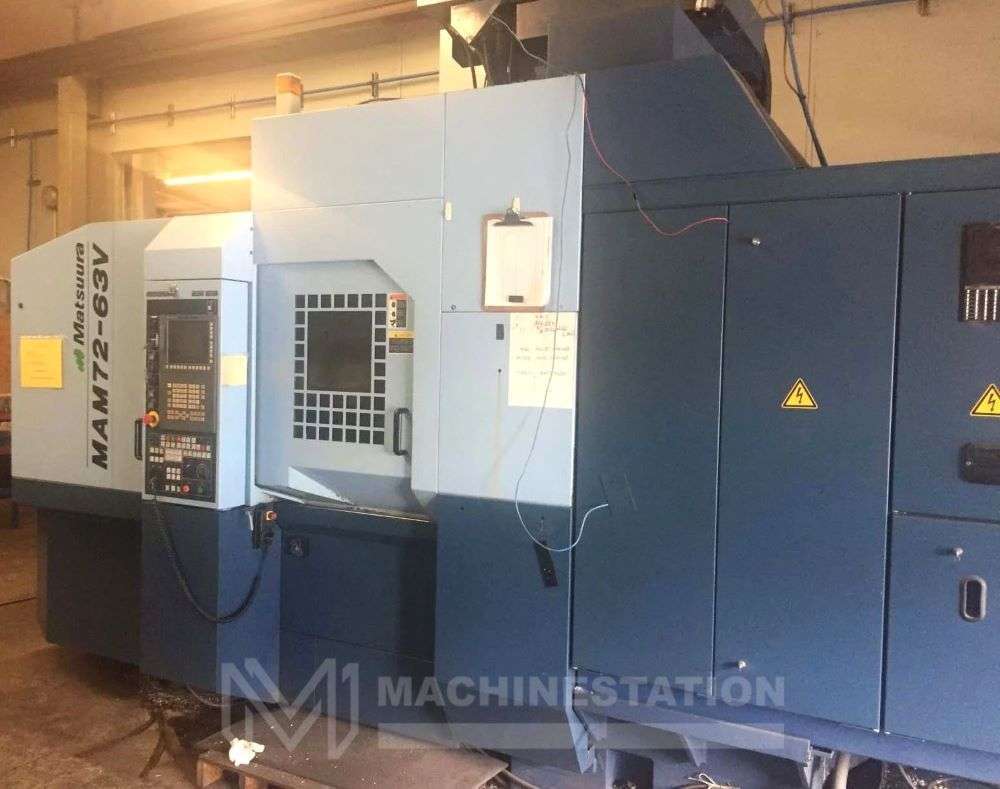

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: Matsuura Model: MAM72-63V Year: 2007 Condition: Used – Good Features: Fanuc G-Tech 30i Series CNC Control Twin Pallet with 2 Extra Pallets (4 Total Pallets) NC Programmable Swiveling Trunnion Table 19.8” x 19.8” 12,000 RPM High Speed Spindle Through Spindle Coolant 120 Station Automatic Tool Changer Laser Tool Setter 300 Work Offsets 1000 Tool Offsets 2MB Data Server on Board Tool Radius Comp For 5-Axis Machining Tolerance Control Broken Tool Detection Tool Life Management Auto Tool Measurement MAYFRAN Conveyor For Aluminum (Backflush Fine Swarf Removal) Travels: X Axis: 29.92″ Y Axis: 33.26″ Z Axis: 25.98″ A Axis: 240° ( 120°/– 120°) ( Table Tilt ) C Axis: 360° ( Table Rotate ) Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute Pallet: Number of Pallets: 2 Station with 2 Extra Pallets (4 Total Pallets) Pallet Surface: 19.68″ x 19.68″ Max Workpiece Diameter: 28.34″ Max Workpiece Height: 17.71″ Max Weight on Table: 770 lbs Spindle: Taper Size: CAT-40 Speed Range: 12,000 RPM Spindle Power: 30 HP Automatic Tool Changer: Capacity: 120 Tools Taper: CT-40 Max Tool Diameter: 3.77″ Max Tool Length: 13.77″ Max Tool Weight: 22 lbs. General: Air Required: 80 psi 4 scfm Power: 220v / 66FLA / 3-Phase Overall Dimensions: 249″ X 153″ X 126″ High Weight: 31,967 lbs Approx.
