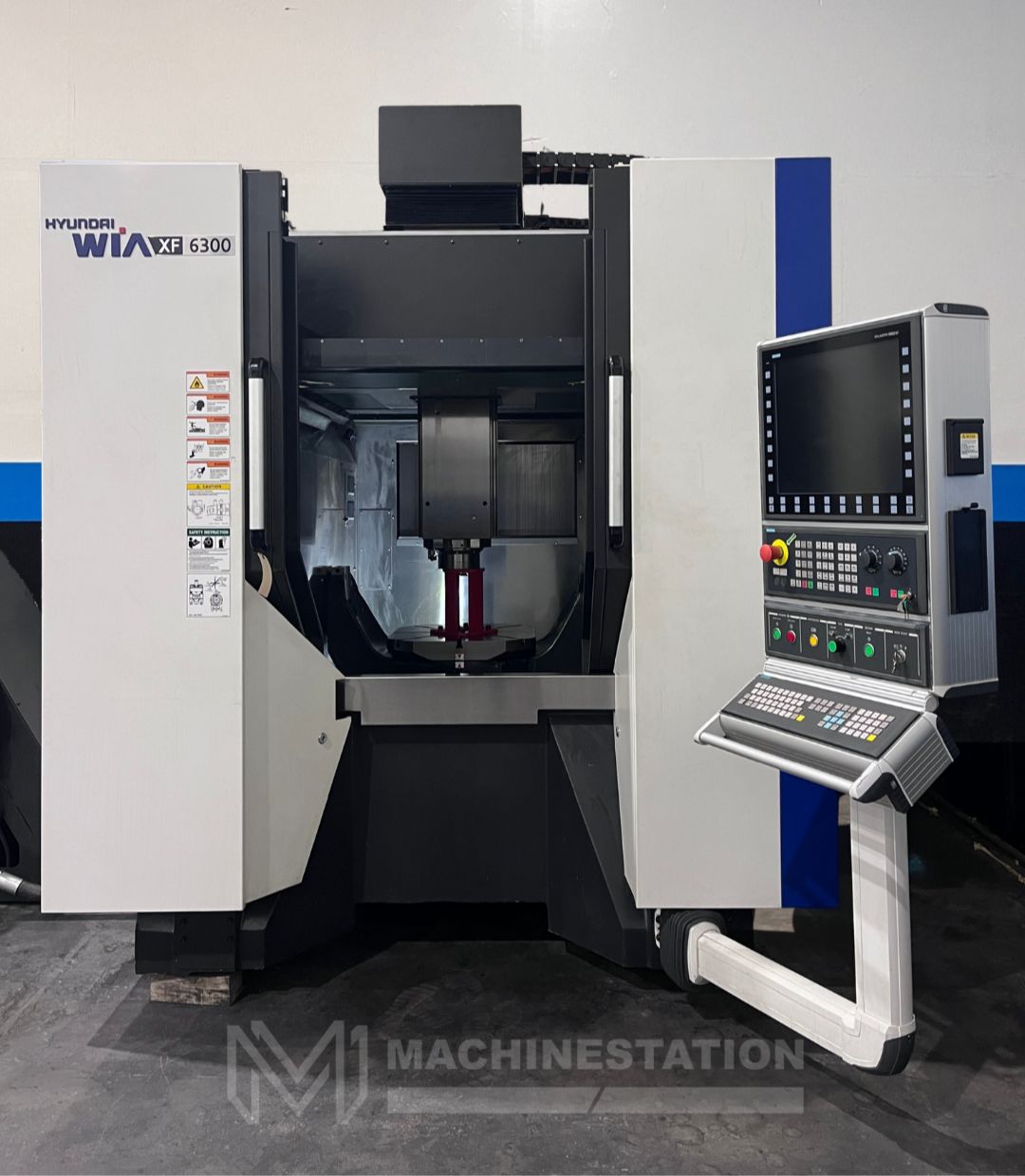

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: Hyundai Wia Model: XF6300 Year: 2016 Condition: Used – Excellent Features: Siemens Sinumarik 840D sl CNC Control Travelling Column Design 5 Axis Simultaneous Machining ø 24.8″ Trunnion Table 15,000 RPM High Speed Spindle 102 Station Automatic Tool Changer High Speed Machining HSK-A63 Spindle Taper Renishaw Probing System Ready (Probe Needed) Linear Scales Rotary Scales Through Spindle Coolant – 100 PSI Spindle Chiller Unit Pan Drive Slot & RS-232 Port Spindle Orientation Helical Interpolation Rigid Tapping High Pressure Coolant System Coolant Tank Chip Conveyor Transformer Levelling Pads Table: Table size: ø 24.8″ Max Part Diameter: 31.5″ Max Part Height: 19.7″ Max Weight on Table: 1323 lbs Travel: X Axis: 25.6″ Y Axis: 23.6″ Z Axis: 19.7″ A Axis: 120° -30° ( Table Tilt ) C Axis: 360° ( Table Rotate ) Distance From Table Top to Spindle Nose: 8.7″ – 28.3″ Rapid Traverse X, Y, Z Axis: 2362 Inch Per Minute Rapid Traverse A Axis: 70 RPM Rapid Traverse C Axis: 110 RPM Spindle: Taper Size: HSK-A63 Speed Range: 15,000 RPM Spindle Power: 35 HP Tool Changer: Capacity: 102 Tools Taper: HSK-A63 Max Tool Diameter: 3.5″ – 4.9″ Max Tool Height: 11.8″ Tool Change Time: 4.5 Seconds General: Air Required: 80 psi, 4 scfm Power: 73 kva / 220v / 3-Phase Machine Dimensions: 83.5″ x 172″ x 120″ High Floor Dimensions: 198″ x 172″ (Length x Width) Weight: 24,250 lbs. Approx.
