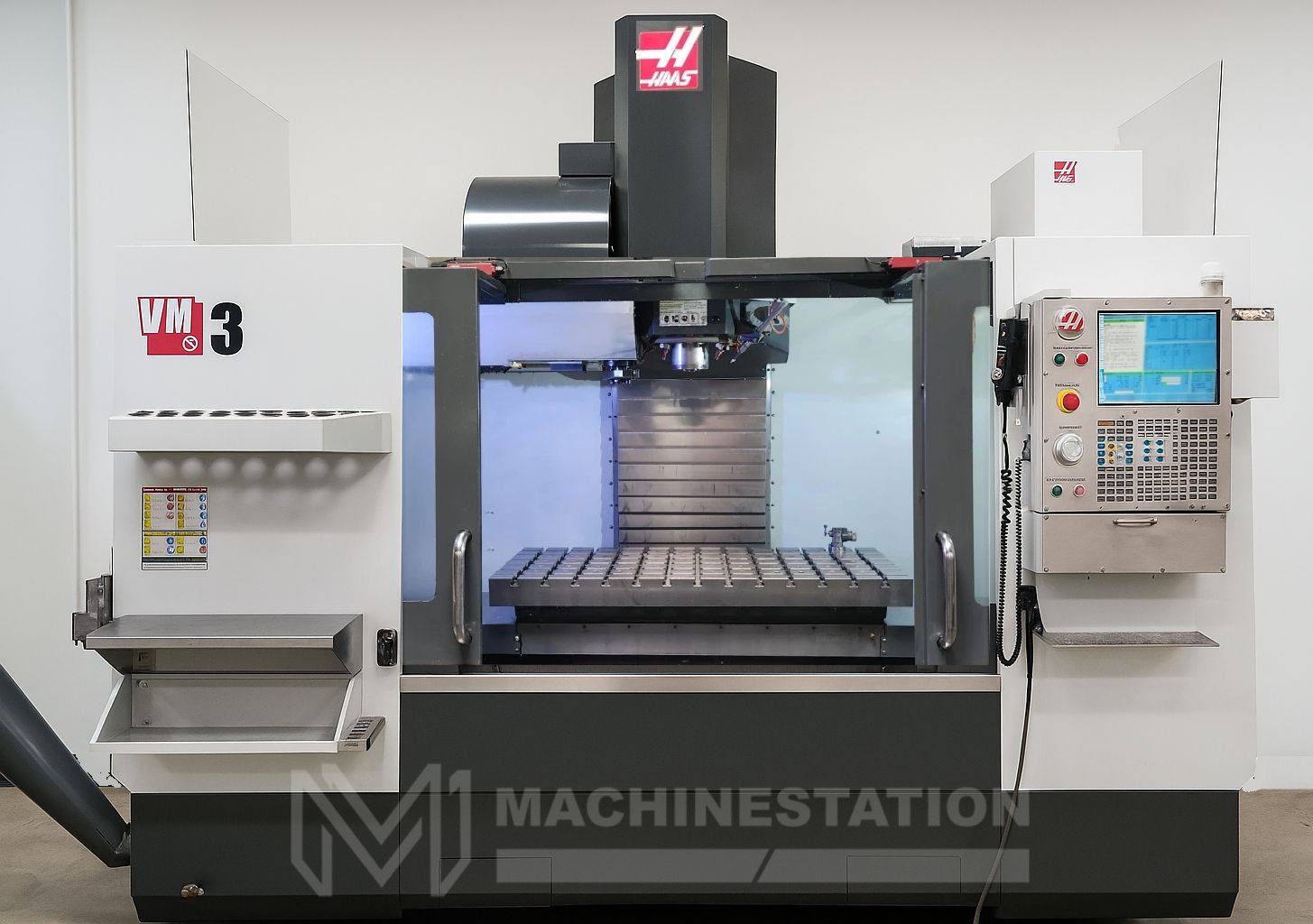

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: Haas Model: VM-3 Year: 2015 Condition: Used – Good Key Features of the Haas VM-3: Haas CNC Control 4th-Axis Drive and Wiring – (Upgraded $3,595 value Included) 12,000 RPM High-Speed Spindle High Speed Machining Wireless Intuitive Probing System (Probe Needed) – (Upgraded $6,395 value Included) Probe Riser Block – (Upgraded $695 value Included) Programmable Coolant Nozzle Visual Part Programming System 30 HP Spindle Drive 24 Station Automatic Tool Changer Rigid Tapping Spindle Orientation Coolant System Chip Auger Travel: X-Axis: 40″ Y-Axis: 26″ Z-Axis: 25″ Rapid Traverse Rates: 710 Inch Per Minute Cutting Feed Rates: 500 Inch Per Minute Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ Table: Length: 54″ Width: 24″ Max Weight on Table: 4000 lbs Spindle: Taper Size: CAT-40 Speed Range: 12,000 RPM Spindle Power: 30 HP Automatic Tool Changer: Capacity: 24 Tools Max Tool Weight: 12 lbs Max Tool Dia: 2.5″ – 5.0″ Max Tool Length: 13″ Tool Changing Time: 2.80 Seconds General: Air Required: 100 psi 4 scfm Power: 220v / 66FLA / 3-Phase Overall Dimensions: 156″ x 102″ x 105″ High Approx. Weight: 12,720 lbs Approx.
