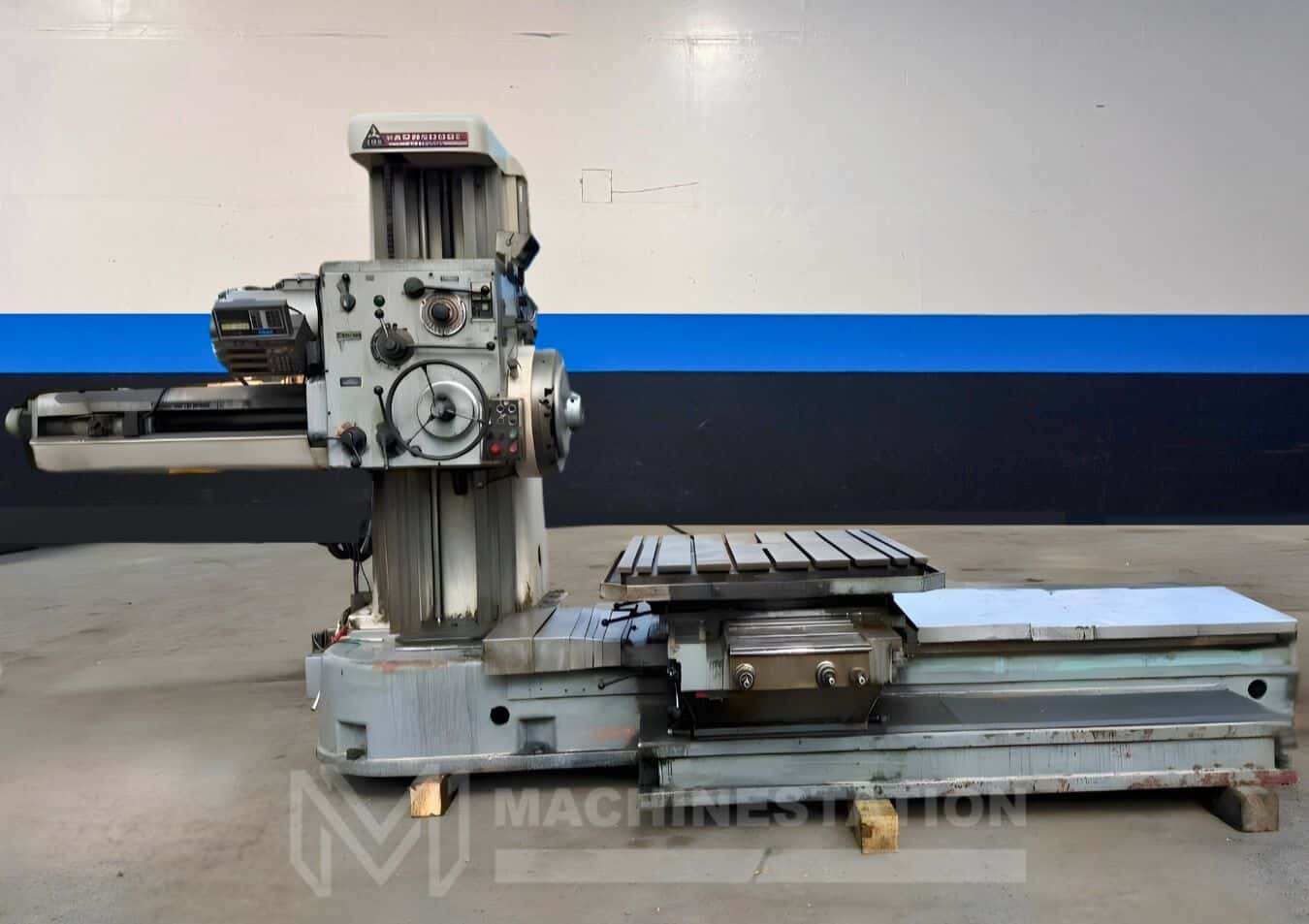

Tos Varnsdorf W100A Horizontal Table Type Boring Mill

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: Tos Varnsdorf Model: W100A Year: 1980 Condition: Used – Good Features: 3.94″ Spindle Diameter 4th Axis Rotary Table Heavy Table Load Capacities Gear Head Spindle for Powerful Torque Facing Chuck Tailstock DRO Note: Machine is dismantled and Ready to be loaded on the Truck Travels: X Axis (Table Traverse Travel): 63.00″ Y Axis (Headstock Vertical Travel): 44.09″ Z Axis (Table Longitudinal Travel): 49.21″ W Axis (Spindle Stroke): 27.6″ Feed Rates: Feeds For Boring – 32 Stages: 0.0008 – 0.47 inch/rev. Feeds For Milling – 18 Stages: 0.71 – 35.43 inch/min Rapid Travese (Spindle Stroke, Headstock and Trable): 110.24 inch/min Rotary Table: Length: 49.21″ Width: 49.21″ Max Weight on Table: 6,624 lbs Indexing: 1 Degree Spindle: Spindle Diameter: 3.94″ Spindle Range: 7.1 – 1,120 RPM Spindle Taper: 50 Power: 15 HP Facing Head: Daimeter: 23.62″ Slide Travel: 8.26″ Facing Diameter Max: 35.43″ Speed Range: 7.1 – 224 RPM General: Power: 66FLA / 205-220v / 3-Phase Machine Dimensions: 234″ x 118″ x 118″ High Machine Weight: 30,905 lbs. Approx.
